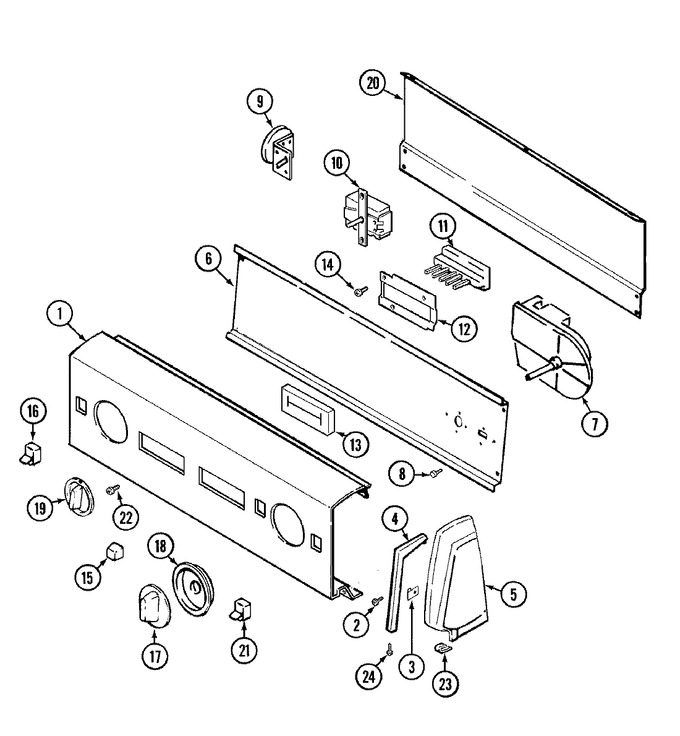

SELECT A DIAGRAM

01 - Base


02 - Control Panel


03 - Pump


04 - Top


05 - Transmission, Dual Drive


06 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21001026		Panel, Control	10	Appelez-nous	-
2	25-7793		Screw	10	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
4	53-0278		Trim, End Cap (lt)	10	Appelez-nous	-
4	53-0277		Trim, End Cap (rt)	10	Appelez-nous	-
5	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
5	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
6	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	35-3190		Shield, Control	10	Appelez-nous	-
6	53-2504		Spacer, Control Shield	10	Appelez-nous	-
7	21001325		Timer	10			$ 174.43
8	25-0205		Screw	10	Appelez-nous	-
9	WP21001554		Switch, Water Level   (Replaces: 35-3691)	10			$ 143.59
9	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	35-4010		Switch, Rotary	10	Appelez-nous	-
11	35-3193		Switch 4 Pushbutton	10	Appelez-nous	-
12	33-6621		Bracket, Switch	10	Appelez-nous	-
13	35-3394		Pad, Switch	10	Appelez-nous	-
14	25-7712		Screw	10	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
15	35-3191		Pushbutton (wht)	10	Appelez-nous	-
16	21001326		Switch, Rocker (wht)	10	Appelez-nous	-
17	21001237		Knob, Timer (wht)	10	Appelez-nous	-
18	21001238		Skirt & Ring Assy. (wht)	10	Appelez-nous	-
19	21001239		Knob, Selector (wht)	10			$ 24.61
20	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
20	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
21	35-3204		Switch, Paddle 2 Pos.	10	Appelez-nous	-
22	25-7649		Screw	10	Appelez-nous	-
23	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
24	25-7760		Screw	10	Appelez-nous	-
25	21001444		Manual, Use & Care	10	Appelez-nous	-
