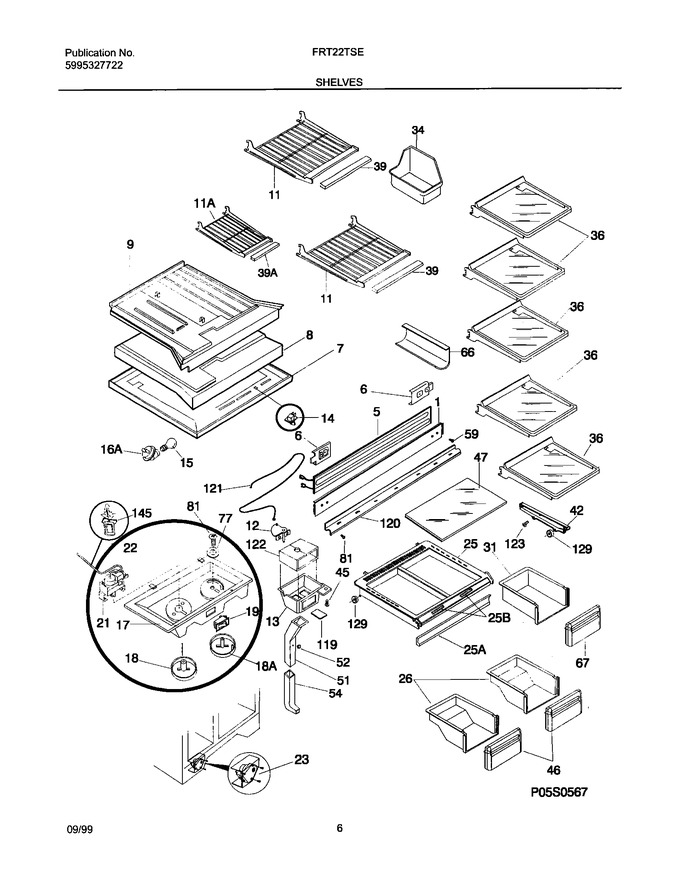

SELECT A DIAGRAM

01 - Cover


02 - Door


04 - Cabinet


06 - Shelves


08 - Shelves


10 - System


12 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299280		Mullion, Black		Appelez-nous	-
6	218845601		Tapping Plate,mullion Mtg ,(2)				$ 2.18
7	5303001380		Screw		Appelez-nous	-
7	218907501		Top Panel-refr,hasc		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
8	218671800		Harness-wiring, Main		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
11	5303292383		Shelf-freezer, Cantilever, Wide		Appelez-nous	-
12	215363901		Washer-air Deflectr		Appelez-nous	-
12	215363801		Spacer-air Deflectr		Appelez-nous	-
12	218634902		Deflector-air,``paddle``				$ 48.01
13	218629900		Cover-air Deflector				$ 23.96
13	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
15	5303001179		Bulb		Appelez-nous	-
17	215932905		Control Box		Appelez-nous	-
17	215935700		Nut-anchor,control Box Mtg (non-illustrated)		Appelez-nous	-
18	5303310731		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303001260		Screw				$ 6.73
22	218660701		Sleeve-insulator, Plastic Tube, Temp Sensor		Appelez-nous	-
23	215277000		Cover-defrost Timer, Top		Appelez-nous	-
23	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
25	215216634		Cover-crisper Pan, With Beam, Rollers, Trim, And Humid C		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
31	5303304632		Pan-meat				$ 267.86
34	5303289069		Container-ice		Appelez-nous	-
36	215406115		Shelf-``spill-safe``, Fixed, Teal Graphics				$ 236.72
39	5303284480		Trim-frzr Shelf, Wide		Appelez-nous	-
42	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
42	215002301		Hander-pan/tray, Lh				$ 65.82
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	218278401		Front-crisper Pan, (2)		Appelez-nous	-
47	218390564		Insert-pan Cover, Glass, Teal Graphics		Appelez-nous	-
51	215132809		Duct-meat Keeper, Upper		Appelez-nous	-
51	215133200		Insulation-air Duct, Rear (non-illustrated)		Appelez-nous	-
51	215133300		Insulation-air Duct, Front (non-illustrated)		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
52	215133000		Damper-air, Meat Kpr Duct (non-illustrated)		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
59	218188500		Screw-mullion Mtg, 10-32 X 3/4, Lh (non-illustrated)		Appelez-nous	-
59	215069518		Cap, Mullion Screw, Black (non Illustrated)		Appelez-nous	-
66	241657701		Rack-wine   (Replaces: 5304402116)				$ 57.41
67	218278701		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11A	5303292384		Shelf-freezer, Cantilever, Narrow		Appelez-nous	-
18A	5303310732		Knob-temp Control, (damper)		Appelez-nous	-
25A	5303308349		Trim-crisper Cover		Appelez-nous	-
25B	5303307881		Control-humidity		Appelez-nous	-
39A	215217539		Trim-frzr Shelf, Narrow		Appelez-nous	-
F14	5309918806		Light Switch			Immediately	$ 21.97
F16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
F21	5304403880		Control-temperature		Appelez-nous	-
F23	215846602		Timer-defrost   (Replaces: 215846606)			Immediately	$ 28.20
F23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
F5	218752300		Heater-mullion				$ 100.70
