Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 204313 Body For Diverter Valve A0 Special Order $ 77.49

2 211448 Clamp A0 Appelez-nous -
3 052366 Cotter Key, 1/8 X 7/8 A0 Appelez-nous -
4 204823 Diaphragm And Arm A0 Appelez-nous -
5 202504 Diverter Value Cover/flapper A0 Special Order $ 91.38

6 201197 Diverter Valve   (Replaces: 201168) A0 Special Order $ 33.29

7 211110 Drain Hose A0 Appelez-nous -
8 211083 Flapper A0 Special Order $ 5.70

9 WP285655 Hose Clamp - 1-5/8 Inch   (Replaces: 200461) A0 In-Stock Immediately $ 7.55

10 WP285655 Hose Clamp - 1-1/2 Inch   (Replaces: 200908) A0 In-Stock Immediately $ 7.55

11 WP3367052 Clamp, Hose   (Replaces: 202574) A0 Special Order $ 7.49

12 WP16272 Hose Coupling   (Replaces: 211111) A0 Special Order $ 7.04

13 211518 Hose A0 Appelez-nous -
14 052690 Hex. Nut, No.10-32 A0 Appelez-nous -
15 WP3400029 Nut, Washered Lock   (Replaces: Y311426) A0 In-Stock Immediately $ 6.98

16 213855 Pin, Pivot A0 Appelez-nous -
17 213856 Retainer A0 Appelez-nous -
18 211085 Return Spring A0 Special Order $ 5.84

19 W11573362 Screw   (Replaces: Y054260) A0 Special Order $ 12.62

20 WP90767 Screw   (Replaces: 214332) A0 In-Stock Immediately $ 7.04

21 Y310842 Screw A0 Appelez-nous -
22 WP489128 Slotted Hex Head Screw   (Replaces: 910091) A0 Special Order $ 9.79

23 911266 Screw, Strainer To Pump A0 Appelez-nous -
24 211388 Shield A0 Appelez-nous -
25 76660 Siphon Break Kit   (Replaces: 201112) A0 In-Stock Immediately $ 119.93

26 200806 Solenoid A0 Appelez-nous -
27 211087 Solenoid Link A0 Appelez-nous -
28 212056 Strainer A0 Appelez-nous -
29 200736 Suds Return Hose A0 Appelez-nous -
30 211171 Suds Return Hose-lower A0 Appelez-nous -
31 211170 Suds Hose, Upper A0 Appelez-nous -
32 200828 Valve Arm Assembly A0 Appelez-nous -
33 211516 Valve Bracket A0 Special Order $ 232.31


    View Diagram in Separate Window     Print Icon   Print Part List

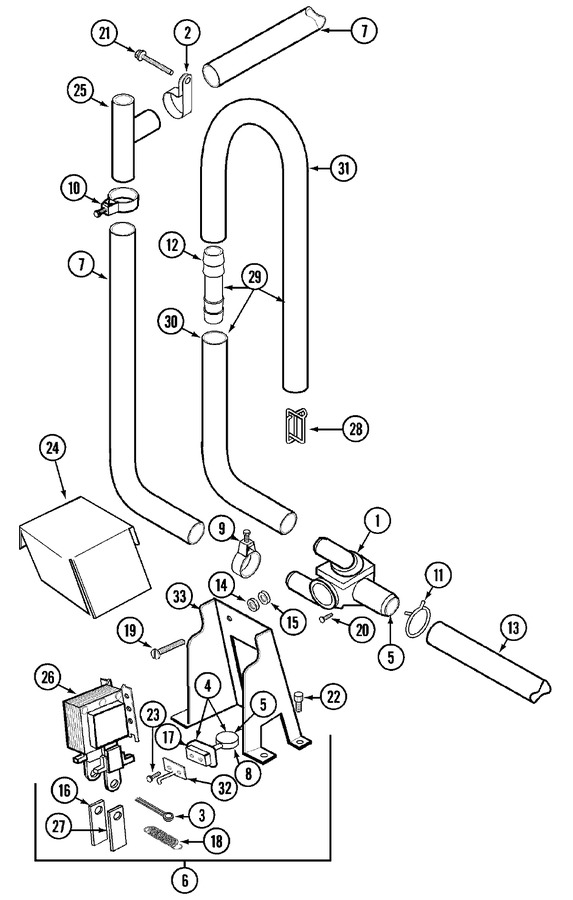

Diagram for LAW9304AAM
