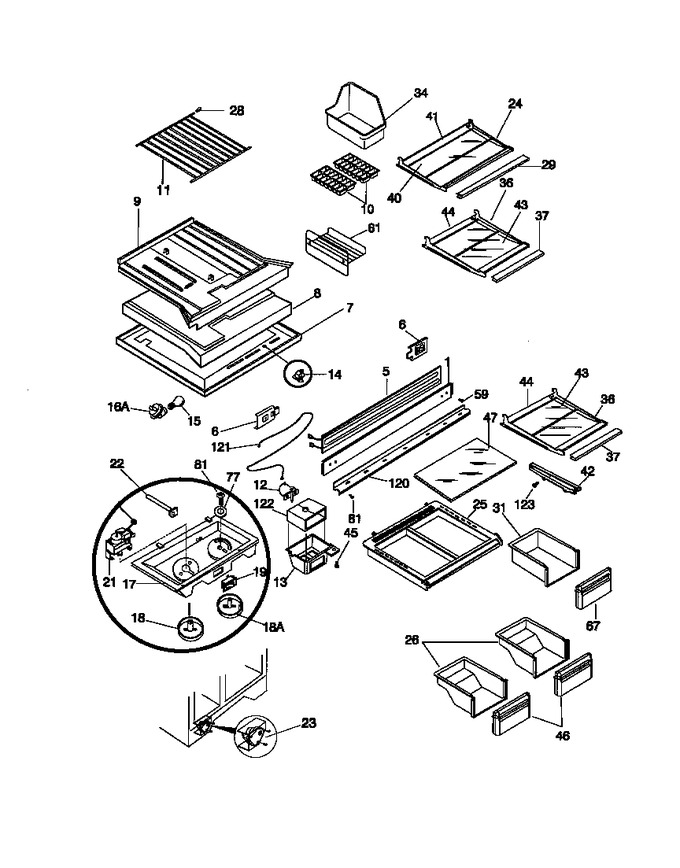

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002202		Mullion, White		Appelez-nous	-
5	215099600		Heater, Mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	215028104		Top Panel, Refr		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	215038601		Divider, Styrofoam		Appelez-nous	-
9	215033800		Bottom Panel, Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303304568		Shelf, Freezer, Flat, Full, Width, Wire		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303308310		Knob-temp Control, (damper)		Appelez-nous	-
18	5303308309		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303292452		Control-temperature				$ 183.12
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
24	215919146		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303310102		Trim-crisper Cover (not Illustrated)		Appelez-nous	-
25	215216637		Cover-crisper Pan, W/beam & Trim, Less Insert		Appelez-nous	-
26	5303292432		Pan, Crisper, (2)		Appelez-nous	-
28	215341200		Cap-protector				$ 2.54
29	215919422		Trim-full Shelf, Front		Appelez-nous	-
31	5303292434		Pan-meat		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
36	215919145		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919429		Trim-half Shelf, Front, (2)		Appelez-nous	-
40	218498101		Glass-full Shelf		Appelez-nous	-
41	215919807		Trim-full Shelf, Rear		Appelez-nous	-
43	218498102		Glass-half Shelf, (2)		Appelez-nous	-
44	215919814		Trim-half Shelf, Rear (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303310092		Front-crisper Pan, (2)		Appelez-nous	-
47	218498103		Insert-pan Cover, Glass				$ 146.71
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303310093		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019202		Seal-refr Top		Appelez-nous	-
122	215132501		Block-air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
*60405	215848000		Spacer-air Channel		Appelez-nous	-
11A	215934600		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
11B	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
121A	215364001		Cable-damper Contrl				$ 82.01
121B	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
12A	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
12B	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12C	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
13A	215420300		Cover-air Deflector		Appelez-nous	-
13B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
17A	215932904		Box-control		Appelez-nous	-
17B	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
23A	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
23B	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23C	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23D	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
42B	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
