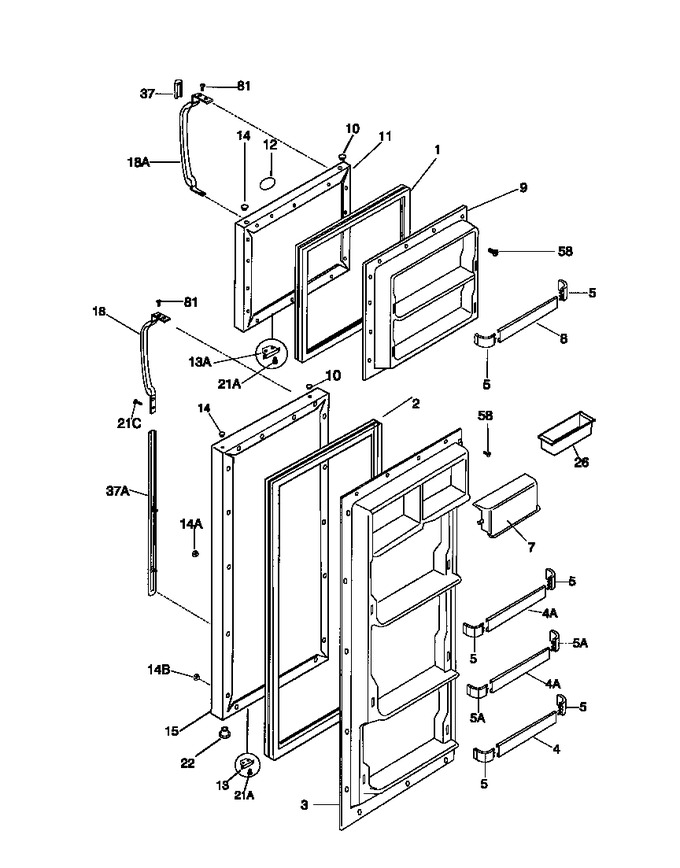

02 - Door


03 - Cabinet


04 - Shelves, Controls


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776714		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732418		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	218499001		Panel-inner Door, Refr		Appelez-nous	-
4	215516265		Rack-door		Appelez-nous	-
4	215516266		Rack-door, (2)		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
5	215251501		Support-door Rack, ``gallon``, Rh/lh		Appelez-nous	-
7	5303310095		Door-dairy		Appelez-nous	-
8	215516264		Rack-door, (2)		Appelez-nous	-
9	215252001		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	5303917500		Panel, Frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008601		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
13	5303289522		Door Stop				$ 40.17
14	218074001		Plug-button, White, Refr Door Front				$ 13.76
14	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	5303917502		Panel, Refr Door, White, W/foam Insulatn		Appelez-nous	-
18	215826301		Handle-door, White, Refr, Hard-grip				$ 204.33
18	215826201		Handle-door, White, Frzr,hard-grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215941101		Trim-handle, White, Upper, W/chrome Band		Appelez-nous	-
37	215867022		Trim, Handle, White, Lower, W/chrome Band, And Snap Locks		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*60400	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*60401	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
