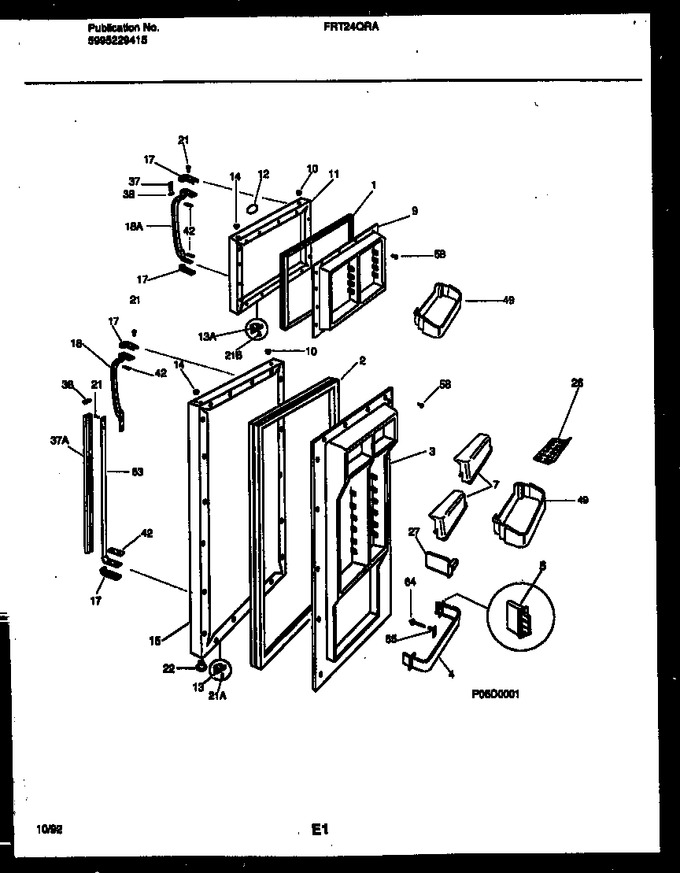

02 - Door Parts
04 - Cabinet Parts
06 - Shelves And Supports
08 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303292418 | Gasket-frzr Door, Magnetic, White |
|
- | |||||
| 2 | 5303292420 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 215188601 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215210000 | Rack-door, W/ End Caps |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303292422 | Door-dairy, (2) |
|
- | |||||
| 9 | 215004301 | Panel, Inner Door, Frzr |
|
- | |||||
| 10 | 5303292413 | Plug-button, White, Hinge Brg Hole |
|
$ 4.94 | |||||
| 11 | 215210401 | Panel-frzr Door, White |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303289522 | Door Stop, Refr Door |
|
$ 40.17 | |||||
| 14 | 215352101 | Plug-button, White, Handle Mtg |
|
- | |||||
| 15 | 215210201 | Panel-refr Door, White |
|
- | |||||
| 17 | 215188401 | Handle End, White |
|
- | |||||
| 18 | 215190601 | Handle-door, White, Refr |
|
- | |||||
| 21 | 215201400 | Screw-handle Mtg, Flat Head, Torx, 8-18(ab) X 5/8, (8) |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 215817806 | Tray-egg, Water Clear (Replaces: 5303284457) |
|
$ 13.46 | |||||
| 27 | 215049601 | Snugger-door Bin, ``paddle Type`` |
|
- | |||||
| 37 | 215117407 | Trim-handle,1.27``,white,upper |
|
- | |||||
| 37 | 215117406 | Trim-handle, 20.93``, White, Lower |
|
- | |||||
| 38 | 215117301 | Band-decorative,handle |
|
- | |||||
| 42 | 215209000 | Shim-handle |
|
- | |||||
| 49 | 5303292729 | Bin-door, Gallon |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 63 | 215209500 | Rail-handle Trim Mtg |
|
- | |||||
| 64 | 5303001250 | Support-door Rack |
|
- | |||||
| 65 | 215346800 | Support-door Rack |
|
- | |||||
| 67487 | 5303007739 | Insulation-door, Fiberglass, (bulk) (if Possible, Use Do |
|
- | |||||
| 67487 | 5303001380 | Screw |
|
- | |||||
| 67487 | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 13A | 215030001 | Door Stop, White, Frzr |
|
$ 29.61 | |||||
| 18A | 215190501 | Handle-door, White, Frzr |
|
- | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 21B | 215218700 | Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4 |
|
- |
