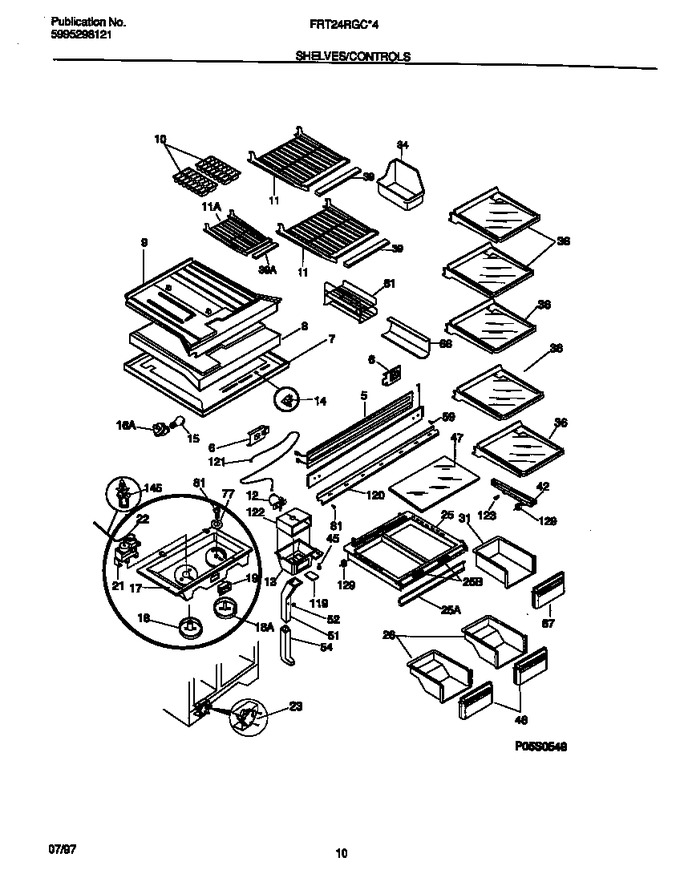

04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300296 | Mullion, Black |
|
- | |||||
| 5 | 215527200 | Heater, Mullion, 115v |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 8 | 215038601 | Divider, Styrofoam |
|
- | |||||
| 9 | 215033800 | Bottom Panel, Frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303292429 | Shelf-freezer, Cantilever, Wide |
|
- | |||||
| 11 | 5303292431 | Shelf-freezer, Cantilever, Narrow |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303310732 | Knob-temp Control, (damper) |
|
- | |||||
| 18 | 5303310731 | Knob-temp Control, Refr |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 22 | 218660701 | Tube, Insulator, Plastic, On Temp Sensor |
|
- | |||||
| 25 | 5303307881 | Control-humidity |
|
- | |||||
| 25 | 5303308329 | Trim-crisper Cover |
|
- | |||||
| 25 | 215216632 | Cover-crisper Pan, With Beam, Rollers, Trim, And Humid C |
|
- | |||||
| 26 | 5303292432 | Pan, Crisper, (2) |
|
- | |||||
| 31 | 5303304565 | Pan, Meat |
|
- | |||||
| 34 | 5303289069 | Container-ice |
|
- | |||||
| 36 | 215406114 | Shelf-``spill-safe``, Fixed, Teal Graphics, (5) |
|
- | |||||
| 39 | 215217542 | Trim-frzr Shelf, Wide |
|
- | |||||
| 39 | 215217582 | Trim-frzr Shelf, Narrow |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 218278301 | Front-storage Pan, Upper |
|
- | |||||
| 47 | 218390537 | Insert-pan Cover, Glass, Teal Graphics |
|
- | |||||
| 54 | 215133100 | Duct, Meat Keeper, Lower |
|
- | |||||
| 59 | 240442708 | Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo (Replaces: 218188000) |
|
$ 8.34 | |||||
| 59 | 218188500 | Screw-mullion Mtg, Lh, Cr Spcl Oval Hd, 10-32 X 0.75, Th |
|
- | |||||
| 59 | 215069518 | Cap-mullion Screw, Black (not Illustrated) |
|
- | |||||
| 66 | 241657701 | Rack-wine, White (Replaces: 5303307872) |
|
$ 57.41 | |||||
| 67 | 218278601 | Front-meat Pan |
|
- | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 119 | 215132700 | Cap, Air Duct |
|
$ 18.38 | |||||
| 120 | 218019202 | Seal-refr Top |
|
- | |||||
| 123 | 215005101 | Screw-roller/hanger`8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *31166 | 215339900 | Clip-shelf |
|
$ 5.83 | |||||
| *31167 | 215848000 | Spacer-air Channel |
|
- | |||||
| *31168 | 215339100 | Seal-divider Throat |
|
- | |||||
| *31169 | 215359900 | Seal-divider Front |
|
- | |||||
| 121A | 215364001 | Cable-damper Contrl |
|
$ 82.01 | |||||
| 121B | 215209400 | Nut, Push, On, Damper Cable (not Illustrated) |
|
- | |||||
| 122A | 218561202 | Block-air Deflector, Rh |
|
- | |||||
| 122B | 218561204 | Block-air Deflector, Lh |
|
- | |||||
| 129A | 5303299152 | Roller-hanger |
|
$ 12.34 | |||||
| 129B | 5303299153 | Bearing-roller (not Illustrated) |
|
$ 5.09 | |||||
| 12A | 218634902 | Deflector-air,``paddle`` |
|
$ 48.01 | |||||
| 12B | 215363800 | Spacer, Air Deflectr (not Illustrated) |
|
- | |||||
| 12C | 215363900 | Washer, Air Deflectr (not Illustrated) |
|
- | |||||
| 13A | 218629900 | Cover-air Deflector |
|
$ 23.96 | |||||
| 13B | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 17A | 215932905 | Control Box |
|
- | |||||
| 17B | 215935700 | Nut, Anchor, Control Box Mtg (not Illustrated) |
|
- | |||||
| 21A | 5303319419 | Control-temperature |
|
- | |||||
| 21B | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215846602 | Timer-defrost (Replaces: 5303321133) |
|
Immediately | $ 28.20 | ||||
| 23B | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23C | 215277000 | Cover, Defrost Timer, Top (not Illustrated) |
|
- | |||||
| 23D | 5303289058 | Shield, Defrost Timr, Btm (not Illustrated) |
|
- | |||||
| 42A | 215002301 | Hanger-pan / Tray, Lh |
|
$ 65.82 | |||||
| 42B | 215002401 | Hanger, Pan/tray, Rh (not Illustrated) |
|
$ 85.84 | |||||
| 51A | 215132809 | Duct-meat Keeper, Upper |
|
- | |||||
| 51B | 215133200 | Insulation-air Duct, Rear (non-illustrated) |
|
- | |||||
| 51C | 215133300 | Insulation, Air Duct, Front (not Illustrated) |
|
- | |||||
| 52A | 215132901 | Control, Damper, Meat Kpr Duct |
|
- | |||||
| 52B | 215133000 | Damper, Air, Meat Kpr Duct (not Illustrated) |
|
- | |||||
| 61A | 218620901 | Shelf-ice Tray |
|
- | |||||
| 61B | 218430200 | Gasket/spacer, Ice Tray Shelf (not Illustrated) |
|
- | |||||
| 7A | 218646601 | Top Panel-refr |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- |
