SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776704		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732408		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215816801		Panel, Inner Door, Refr		Appelez-nous	-
4	215516256		Rack-door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303308308		Door-dairy		Appelez-nous	-
9	215004301		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215747811		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215210211		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	218025604		Handle End, Almond		Appelez-nous	-
18	215983219		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423600		Bumper-light Switch		Appelez-nous	-
37	218549830		Trim-handle, Almond, Upper, W/dec Gold Band		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	218592307		Bin-door, Gallon, With Trim		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
76	218423700		Rack-microwave Dish				$ 301.79
77	218423501		Dish-microwave, (2)				$ 4.59
*34200	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215008605		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215981319		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
37A	215867050		Trim-handle, Almond, Lower, W/gold Band, & Stick-on Lockon Lock		Appelez-nous	-
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-

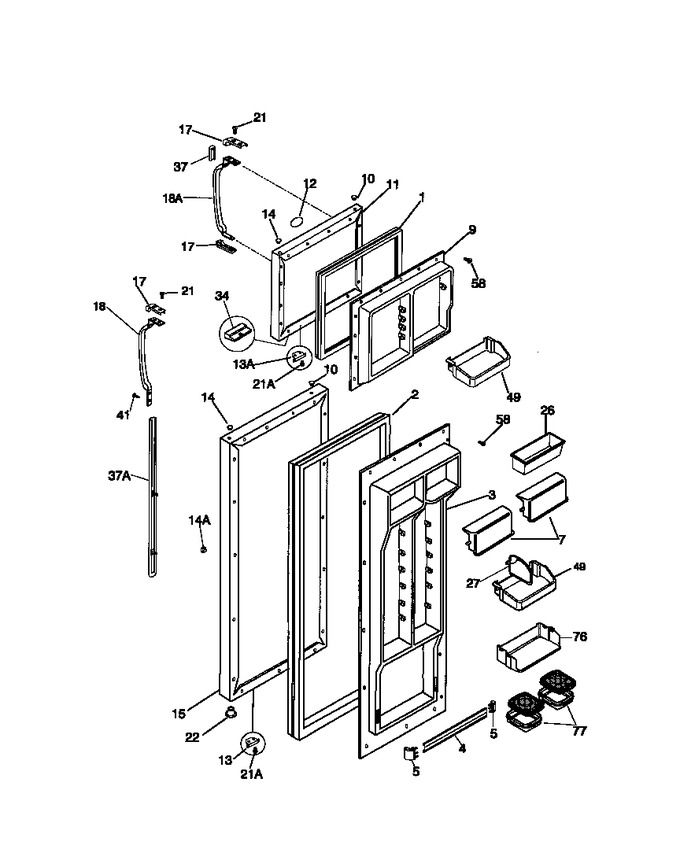

    View Diagram in Separate Window       Print Part List
