SELECT A DIAGRAM

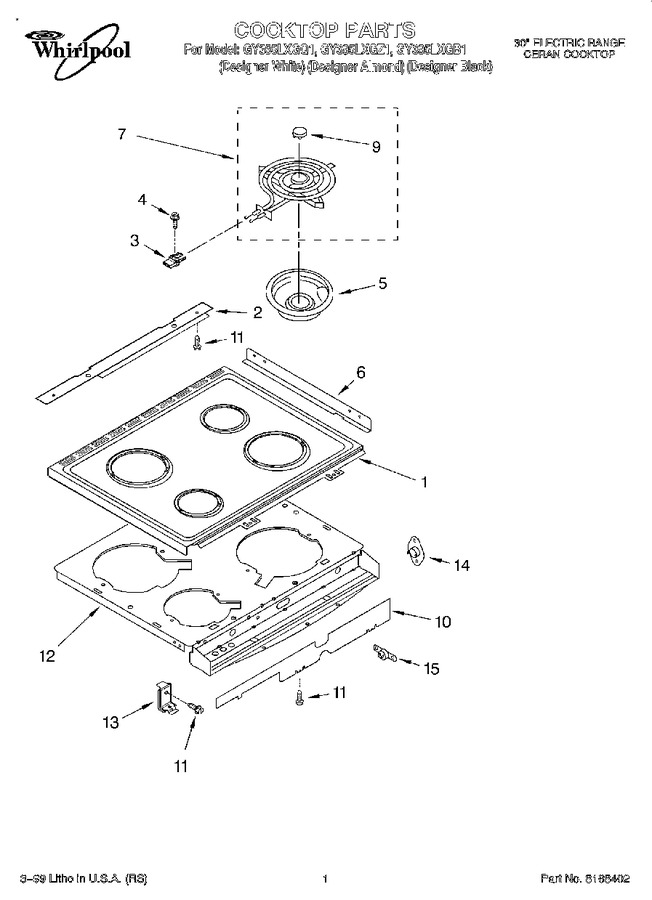

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752882GT		Cooktop, Coil (almond)		Appelez-nous	-
1	9752882GB		Cooktop, Coil (black)		Appelez-nous	-
1	9752882GW		Cooktop, Coil (white)		Appelez-nous	-
2	9752889		Trim, Rear		Appelez-nous	-
3	9781324		Receptacle, Element		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
5	WPW10290350		Drip Bowl (8``)   (Replaces: 3169205)			Immediately	$ 15.25
5	W10290353RW		Drip Bowl (6``)   (Replaces: 3169204)			Immediately	$ 19.27
6	9752890		Trim, Side (2)		Appelez-nous	-
7	WPW10259868		Element, Surface (coil, 6`` Lf)   (Replaces: 9781326)			Immediately	$ 112.28
7	PS26-4BK		Element, Surface (coil 8`` Rf-lr)   (Replaces: 9781325)			Immediately	$ 40.46
7	9781327		Element, Surface (coil, 6`` Rr (accu Simmer))		Appelez-nous	-
9	4211986		Medallion, (1)		Appelez-nous	-
9	4211952		Medallion, (3)		Appelez-nous	-
10	9752884		Shield, Cover		Appelez-nous	-
11	9780265		Screw		Appelez-nous	-
12	9752883		Support, Cooktop		Appelez-nous	-
13	9751629		Bracket, Pivot		Appelez-nous	-
14	WP9759944		Bimetal, Fan   (Replaces: 9751984)			Immediately	$ 121.57
15	341196		Thermostat				$ 33.17

    View Diagram in Separate Window       Print Part List
