SELECT A DIAGRAM

01 - Cooktop, Literature

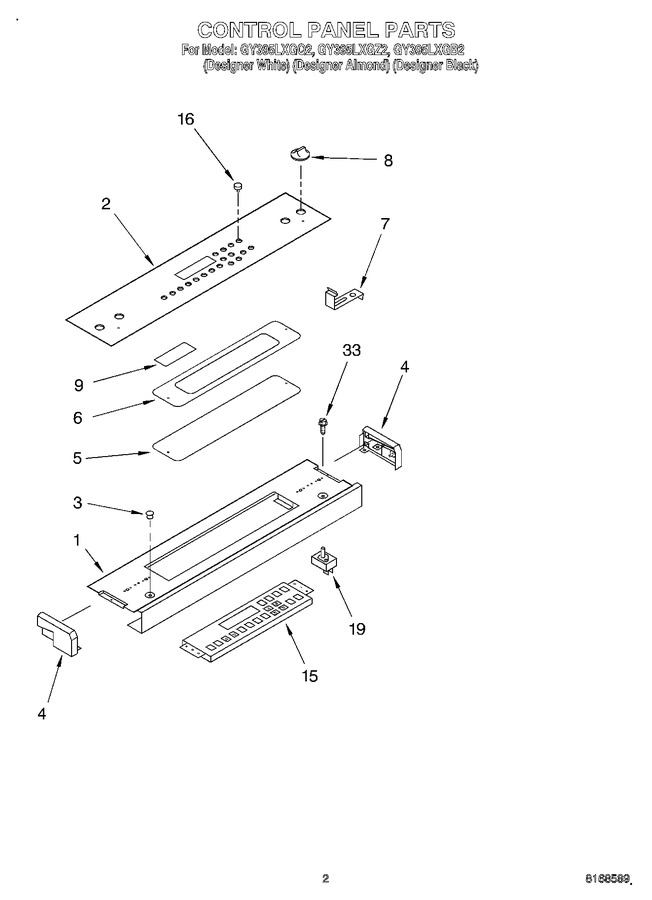

02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752897PB		Panel, Control (black)		Appelez-nous	-
1	9752897PW		Panel, Control (white)				$ 40.63
1	9752897PT		Panel, Control (almond)		Appelez-nous	-
1	9780265		Panel, Control (screw)		Appelez-nous	-
2	9752899CW		Glass-console (white)		Appelez-nous	-
2	9752899CB		Glass-console (black)		Appelez-nous	-
2	9752899CT		Glass-console (almond)		Appelez-nous	-
3	9780799		Lens, Indic. (2)		Appelez-nous	-
4	9780265		(end Cap Right) (screw)		Appelez-nous	-
4	9781889FB		End Cap Left (black)		Appelez-nous	-
4	814562		End Cap Left (white)   (Replaces: 9781889FW)				$ 6.45
4	9781889FT		End Cap Left (almond)		Appelez-nous	-
4	9781888FB		(end Cap Right) (black)		Appelez-nous	-
4	814562		(end Cap Right) (white)   (Replaces: 9781888FW)				$ 6.45
4	9781888FT		(end Cap Right) (almond)		Appelez-nous	-
5	9753504		Gasket, Cover		Appelez-nous	-
6	9752955		Cover, Control		Appelez-nous	-
7	9780265		Screw		Appelez-nous	-
7	9752906		Clip, Glass (2)		Appelez-nous	-
8	9752405FT		Knobs, Control (4) (almond)		Appelez-nous	-
8	WP9752405FW		Knobs, Control (4) (white)   (Replaces: 9752405FW)				$ 19.98
8	9752405FB		Knobs, Control (4) (black)				$ 17.20
9	9753503		Label-wpsi Control		Appelez-nous	-
15	9753633		Control, Range				$ 291.97
15	423247		Screw		Appelez-nous	-
16	9781954FT		Knob, Timer (18) (almond)		Appelez-nous	-
16	9781954FW		Knob, Timer (18) (white)				$ 16.39
16	9781954FB		Knob, Timer (18) (black)				$ 14.66
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 88.82
19	WP9750643		Infinite Switch (1400w (2))   (Replaces: 9750643)			Immediately	$ 130.61
33	WP9781235		Speed Clip   (Replaces: 9781235)				$ 10.76
33	WP3400882		Screw   (Replaces: 3400816)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
