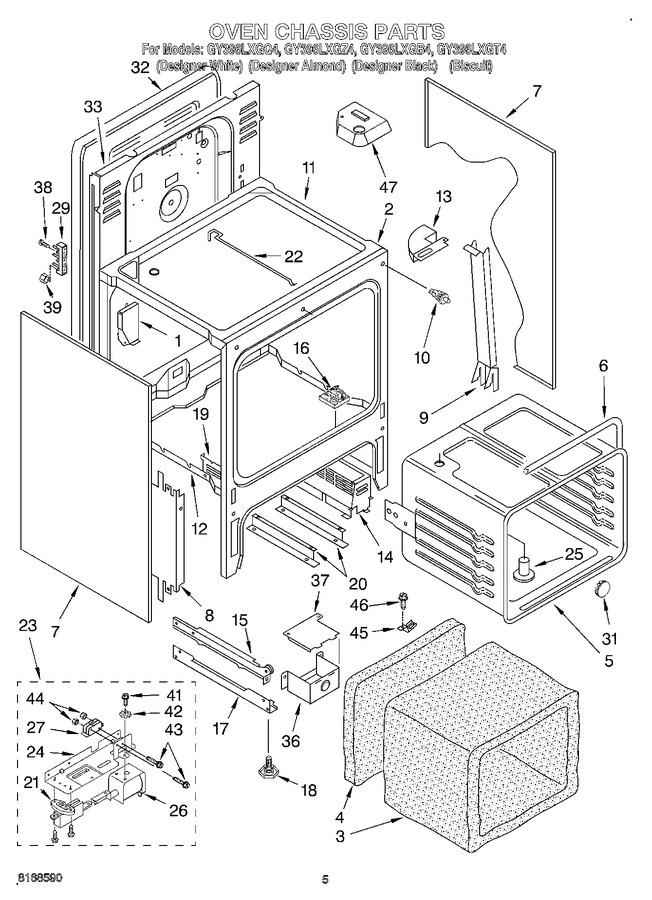

04 - Oven Chassis
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751350 | Vent Box, Oven |
|
- | |||||
| 2 | 9750514GM | Chassis, Front |
|
- | |||||
| 3 | 9754000 | Insulation, Wrap |
|
- | |||||
| 4 | 9754011 | Insulation, Rear |
|
- | |||||
| 5 | 9781293GM | Oven Liner |
|
- | |||||
| 6 | 3191649 | Gasket, Oven |
|
- | |||||
| 7 | 9781907PW | Oven , Side Panel (white, L Or R) |
|
- | |||||
| 7 | 9781907PT | Oven , Side Panel (almond, L Or R) |
|
- | |||||
| 7 | 9781907PB | Oven , Side Panel (black, L Or R) |
|
- | |||||
| 7 | 9781907PC | Oven , Side Panel (biscuit, L Or R) |
|
- | |||||
| 8 | 9780664 | Shield, Insulation |
|
- | |||||
| 8 | 9780265 | Screw |
|
- | |||||
| 9 | 9751789 | Duct, Side Fan |
|
- | |||||
| 9 | 9780265 | Screw |
|
- | |||||
| 10 | 9781580 | Door Switch (oven Light) |
|
$ 65.75 | |||||
| 11 | 9752919 | Burner Box |
|
- | |||||
| 11 | 9780275 | Screw |
|
- | |||||
| 11 | 9780265 | Screw |
|
- | |||||
| 12 | 9750142 | Oven Bottom |
|
- | |||||
| 12 | 9780265 | Screw |
|
- | |||||
| 13 | 9780265 | Screw |
|
- | |||||
| 13 | 9751653 | Duct, Top |
|
- | |||||
| 14 | 9751060 | Support, Fan |
|
- | |||||
| 14 | 9780265 | Screw |
|
- | |||||
| 15 | 9780265 | Screw |
|
- | |||||
| 15 | 9750224 | Rail, Drawer (right) |
|
- | |||||
| 15 | 9750223 | Drawer Rail, Left |
|
- | |||||
| 16 | 9751020 | Motor, Fan |
|
$ 215.07 | |||||
| 16 | 9751808 | Screw |
|
- | |||||
| 17 | 9750147 | Bottom Rail (2) |
|
- | |||||
| 17 | 9780265 | Screw |
|
- | |||||
| 18 | WPW10058460 | Foot, (4) (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 19 | 9750149 | Receiver, Hinge (r Or L) |
|
- | |||||
| 19 | 9780265 | Screw |
|
- | |||||
| 19 | 9780272 | Screw |
|
- | |||||
| 20 | 9781904 | Support Rail, Pan (2) |
|
- | |||||
| 20 | 9780265 | Screw |
|
- | |||||
| 21 | 9752462 | Single Position Device (not Serviced) |
|
- | |||||
| 22 | 9750523 | Rod, Lock |
|
- | |||||
| 23 | 9752404 | Oven Lock Assembly |
|
- | |||||
| 24 | 9750526 | Bracket, Lock |
|
- | |||||
| 25 | 9753091 | Vent Tube |
|
- | |||||
| 26 | 9752409 | Solenoid |
|
- | |||||
| 27 | 9750965 | Switch, Interlock |
|
$ 72.00 | |||||
| 29 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 31 | 9780578 | Plug, Button |
|
- | |||||
| 32 | 9751353 | Cover, Rear |
|
- | |||||
| 33 | 9751051 | Back, Chassis |
|
- | |||||
| 36 | 9752344 | Box, Terminal |
|
- | |||||
| 37 | 9752345 | Cover, Terminal Box |
|
- | |||||
| 38 | 98884 | Screw |
|
- | |||||
| 39 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 41 | 422222 | Screw |
|
- | |||||
| 42 | 424238 | Washer |
|
- | |||||
| 43 | 9750887 | Screw |
|
- | |||||
| 44 | 9750888 | Nut |
|
- | |||||
| 45 | 313660 | Clip |
|
- | |||||
| 45 | 3169573 | Strap, Ground |
|
- | |||||
| 46 | WP681414 | Screw, Ground (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 47 | 9753413 | Block, Balance |
|
- | |||||
| 47 | 340184 | Screw |
|
$ 12.10 | |||||
| NI | 9780265 | Screw |
|
- |
