01 - Cover
02 - Door
03 - Cabinet

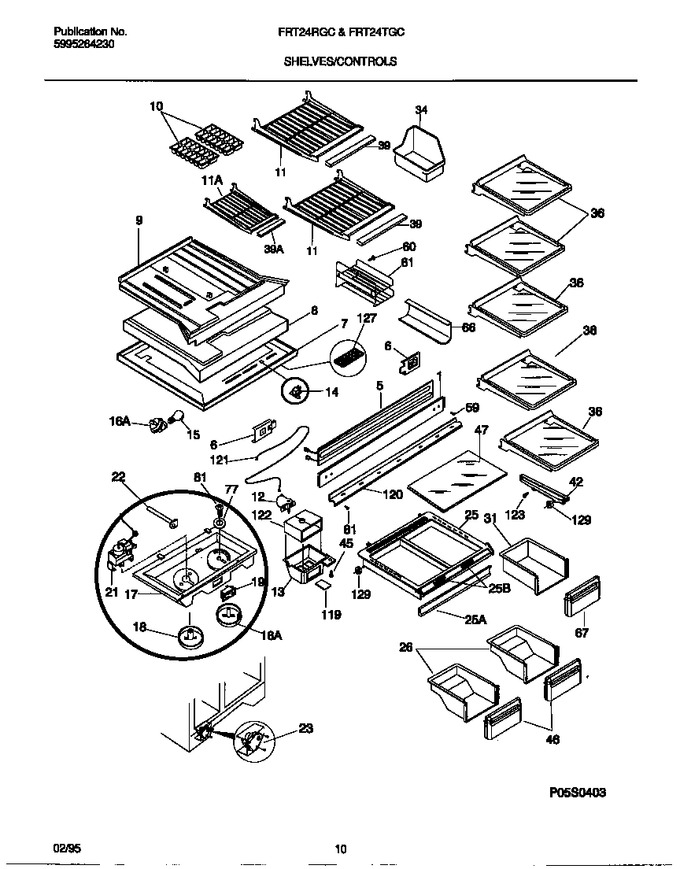

04 - Shelves & Controls
05 - Cooling System
06 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300295 | Mullion, White |
|
- | |||||
| 5 | 215527200 | Heater, Mullion, 115v |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 8 | 215038601 | Divider, Styrofoam |
|
- | |||||
| 9 | 215033800 | Bottom Panel, Frzr |
|
- | |||||
| 11 | 5303292429 | Shelf-freezer, Cantilever, Wide, (2) |
|
- | |||||
| 11 | 5303292431 | Shelf-freezer, Cantilever, Narrow |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303308309 | Knob-temp Control |
|
- | |||||
| 18 | 5303308310 | Knob-temp Control, (damper) |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 22 | 215932100 | Housing,cont Cap Tube |
|
- | |||||
| 25 | 215216632 | Cover-crisper Pan, With Beam, Rollers, Trim, And Humid C |
|
- | |||||
| 25 | 5303307881 | Control-humidity |
|
- | |||||
| 25 | 5303308329 | Trim-crisper Cover |
|
- | |||||
| 26 | 5303292432 | Pan, Crisper, (2) |
|
- | |||||
| 31 | 5303304565 | Pan, Meat |
|
- | |||||
| 34 | 5303289069 | Container-ice |
|
- | |||||
| 36 | 215406114 | Shelf-``spill-safe``, Fixed, Teal Graphics, (5) |
|
- | |||||
| 39 | 215217542 | Trim-frzr Shelf, Wide, (2) |
|
- | |||||
| 12A | 215132300 | Deflector, Air, ``paddle`` |
|
- | |||||
| 12B | 215363800 | Spacer, Air Deflectr (not Illustrated) |
|
- | |||||
| 12C | 215363900 | Washer, Air Deflectr (not Illustrated) |
|
- | |||||
| 13A | 215420300 | Cover-air Deflector |
|
- | |||||
| 13B | 5308016567 | Nut, Anchor (not Illustrated) |
|
- | |||||
| 17A | 215932904 | Box-control |
|
- | |||||
| 17B | 215935700 | Nut, Anchor, Control Box Mtg (not Illustrated) |
|
- | |||||
| 21A | 5303292452 | Control-temperature |
|
$ 183.12 | |||||
| 21B | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 215846602 | Timer-defrost (Replaces: 5303275811) |
|
Immediately | $ 28.20 | ||||
| 23B | 215277000 | Cover, Defrost Timer, Top (not Illustrated) |
|
- | |||||
| 23C | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23D | 5303289058 | Shield, Defrost Timr, Btm (not Illustrated) |
|
- | |||||
| 7A | 215028104 | Top Panel, Refr |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- |
