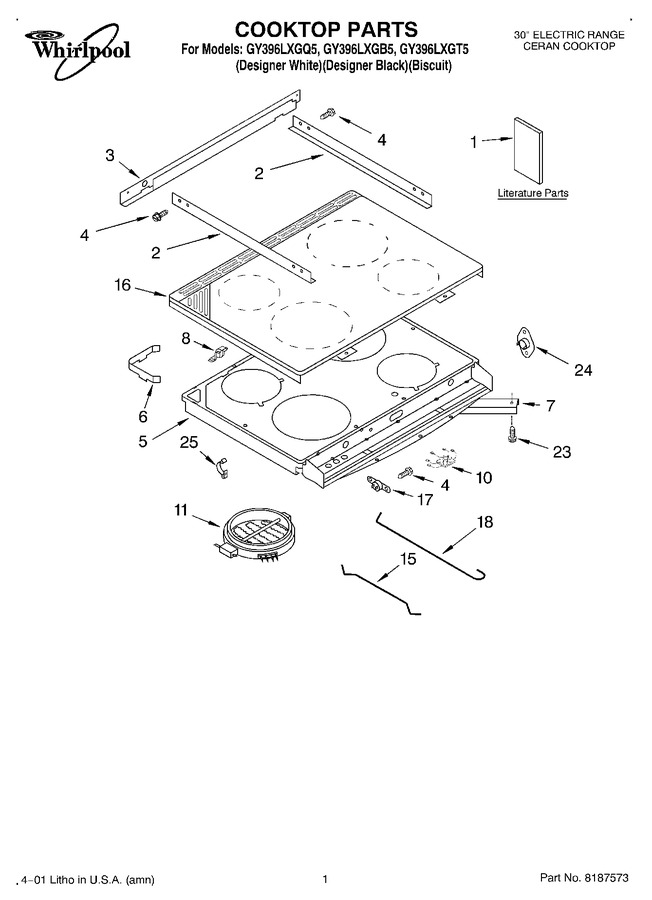

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753268		Literature Parts (back Cover Trim Instructions)		Appelez-nous	-
1	LIT9753911		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9752913		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753914		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT9753426		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9752912		Literature Parts (use & Care Guide)		Appelez-nous	-
2	9752890		Trim, Side (2)		Appelez-nous	-
3	9752889		Trim, Back		Appelez-nous	-
4	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
5	9752892		Support, Element		Appelez-nous	-
6	9752869		Sleeve, Vent		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
8	9752003		Washer, Privot		Appelez-nous	-
8	9751629		Bracket, Pivot		Appelez-nous	-
10	9781936		Hot Light		Appelez-nous	-
11	W10823699		Element, Surface (1500 W - Lr)   (Replaces: 8272564)			Immediately	$ 145.67
11	W10823697		Element, Surface (2200w - Rr)   (Replaces: 9753997)				$ 326.21
11	W10823696		Element, Surface (2500 W - Lf)   (Replaces: 8272565)			Immediately	$ 192.83
11	W10823698		Element, Surface (1800 W - Rf)   (Replaces: 8272566)			Immediately	$ 175.61
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
16	9752896CB		Cooktop, Ceran (black)		Appelez-nous	-
16	9752896CC		Cooktop, Ceran (biscuit)		Appelez-nous	-
16	9752896CW		Cooktop, Ceran (white)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
23	9780272		Screw		Appelez-nous	-
24	WP9759944		Bimetal, Fan   (Replaces: 9751984)			Immediately	$ 121.57
25	WP98997		Clip, Wire   (Replaces: 98997)				$ 9.98
