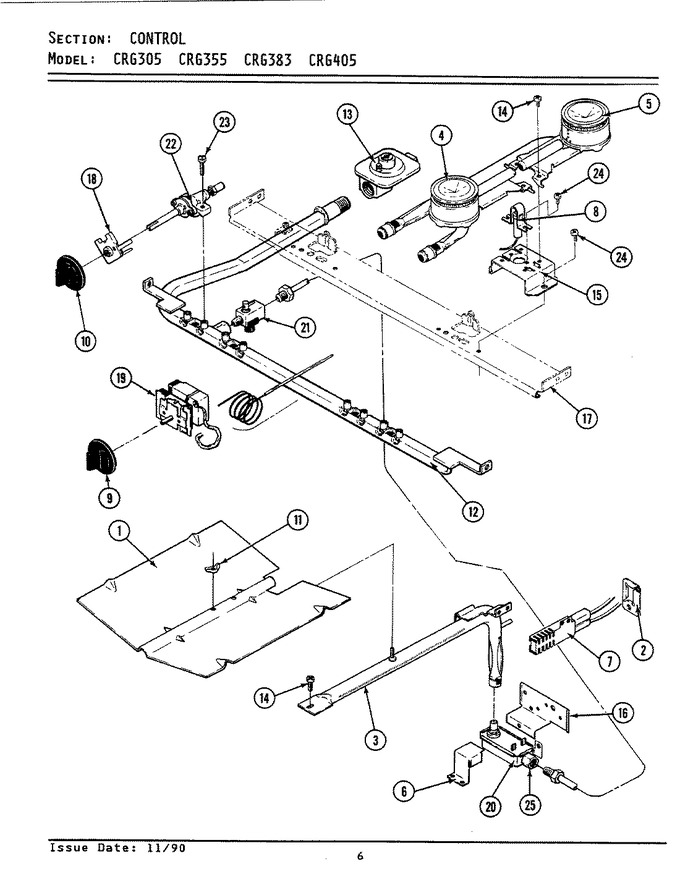

02 - Control
03 - Control Panel
04 - Door
05 - Oven Body/main Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 00 |
|
- | ||||
| 2 | 3801F179-45 | Bracket, Burner Lighter | 00 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 05 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 07 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 00 |
|
- | ||||
| 4 | 7505P170-60 | Burner-top Front | 00 |
|
- | ||||
| 5 | 7505P171-60 | Burner, Top Rear | 00 |
|
- | ||||
| 6 | 4005F173-51 | Cover, Valve Terminal | 00 |
|
- | ||||
| 7 | 12400035 | Igniter Bake (Replaces: 7432P062-60) | 01 |
|
Immediately | $ 60.44 | |||
| 7 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 00 |
|
Immediately | $ 60.44 | |||
| 8 | 7432P029-60 | Igniter, Top Burner (lt) | 00 |
|
- | ||||
| 8 | 7432P028-60 | Igniter, Top Burner (rt) | 00 |
|
- | ||||
| 9 | 7731P032-60 | Knob, Thermostat | 00 |
|
- | ||||
| 10 | 7733P036-60 | Knob, Valve | 00 |
|
- | ||||
| 10 | 7733P051-60 | Knob, Valve | 05 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 00 |
|
$ 6.37 | ||||
| 12 | 7513P043-60 | Pipe, Manifold----na | 00 |
|
- | ||||
| 12 | 7513P101-60 | Pipe, Manifold | 05 |
|
- | ||||
| 13 | 7510P002-60 | Regulator, Pressure | 00 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 15 | 3807F201-45 | Support, Top Pilot | 00 |
|
- | ||||
| 16 | 3807F120-34 | Support | 00 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 17 | 3807F347-51 | Support, Top Burner | 00 |
|
- | ||||
| 18 | 7403P216-60 | Switch, Top Burner | 05 |
|
- | ||||
| 18 | 7403P259-60 | Switch | 08 |
|
- | ||||
| 18 | 7403P285-60 | Switch, Igniter | 10 |
|
$ 54.75 | ||||
| 18 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 00 |
|
$ 118.82 | ||||
| 19 | 7404P062-60 | Thermostat, Oven | 02 |
|
- | ||||
| 19 | 7404P063-60 | Thermostat | 04 |
|
- | ||||
| 19 | 7101P279-60 | Screw W/washer | 02 |
|
- | ||||
| 19 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 19 | 7515P008-60 | Thermostat | 00 |
|
- | ||||
| 20 | 7501P017-60 | Valve, Oven | 00 |
|
- | ||||
| 20 | 7501P108-60 | Valve, Oven | 07 |
|
- | ||||
| 20 | 3414F049-44 | Tubing, 3/8`` X 54.5`` | 00 |
|
- | ||||
| 21 | 7502P002-60 | Valve, Shut Off | 00 |
|
- | ||||
| 22 | 7502P224-60 | Valve | 09 |
|
- | ||||
| 22 | 7502P111-60 | Valve, Burner | 00 |
|
- | ||||
| 22 | 7502P145-60 | Valve, Top | 05 |
|
- | ||||
| 22 | 7214P003-60 | Sleeve | 00 |
|
- | ||||
| 23 | 7101P296-60 | Screw | 04 |
|
- | ||||
| 23 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 25 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- |
