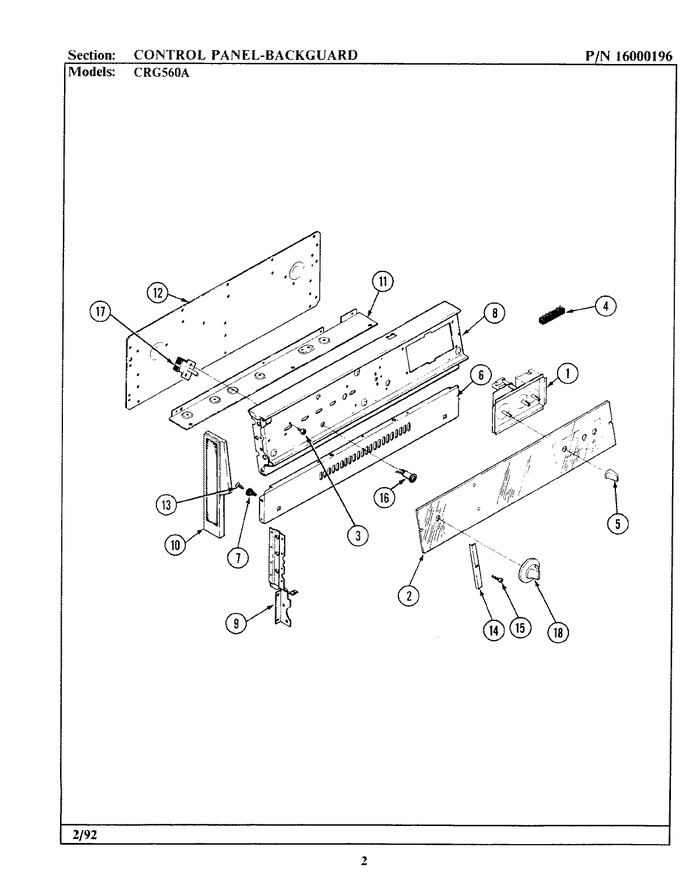

01 - Control Panel
02 - Control Panel/top Assembly/body
03 - Door/access Drawer
04 - Gas Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 7910P144-60 | Glass, Bkgd | 00 |
|
- | ||||
| 3 | 7101P280-60 | Screw W/washer (blk) | 00 |
|
- | ||||
| 4 | 7401P015-60 | Block, Terminal | 00 |
|
- | ||||
| 5 | 7711P359-60 | Knob, Clock | 00 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 00 |
|
Immediately | $ 6.85 | |||
| 6 | 2620W053-19 | Panel, Backguard (lower) | 00 |
|
- | ||||
| 7 | 7105P002-60 | Support, Main Top | 00 |
|
- | ||||
| 8 | 2601W271-84 | Bkgd Assy, Alm | 00 |
|
- | ||||
| 8 | 2601W271-81 | Bkgd Assy Wht | 00 |
|
- | ||||
| 9 | 3807W356-51 | Support Bkgd Rt | 00 |
|
- | ||||
| 9 | 3807W355-51 | Support Bkgd Lf | 00 |
|
- | ||||
| 9 | WPW10068250 | Screw (Replaces: 7101P074-60) | 00 |
|
$ 3.66 | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 00 |
|
Immediately | $ 6.85 | |||
| 10 | 7103P053-60 | Nut, Push-on End Cap | 00 |
|
- | ||||
| 10 | 7726P032-60 | Trim, Bkgd End (rt) | 00 |
|
- | ||||
| 10 | 7726P031-60 | Trim, Bkgd End (lt) | 00 |
|
- | ||||
| 11 | 4005F034-80 | Cover, Bottom | 00 |
|
- | ||||
| 12 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 12 | 4005F034-80 | Cover, Bottom | 00 |
|
- | ||||
| 13 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 14 | 7742P009-60 | Trim, Retainer Glass | 00 |
|
- | ||||
| 15 | 7101P008-60 | Screw | 00 |
|
- | ||||
| 16 | 7407P080-60 | Light, Signal | 00 |
|
- | ||||
| 17 | 7403P178-60 | Switch, Selector | 00 |
|
- | ||||
| 18 | 5180A116-60 | Harness Upper | 00 |
|
- | ||||
| 18 | 7739P031-60 | Knob, Selector | 00 |
|
- |
