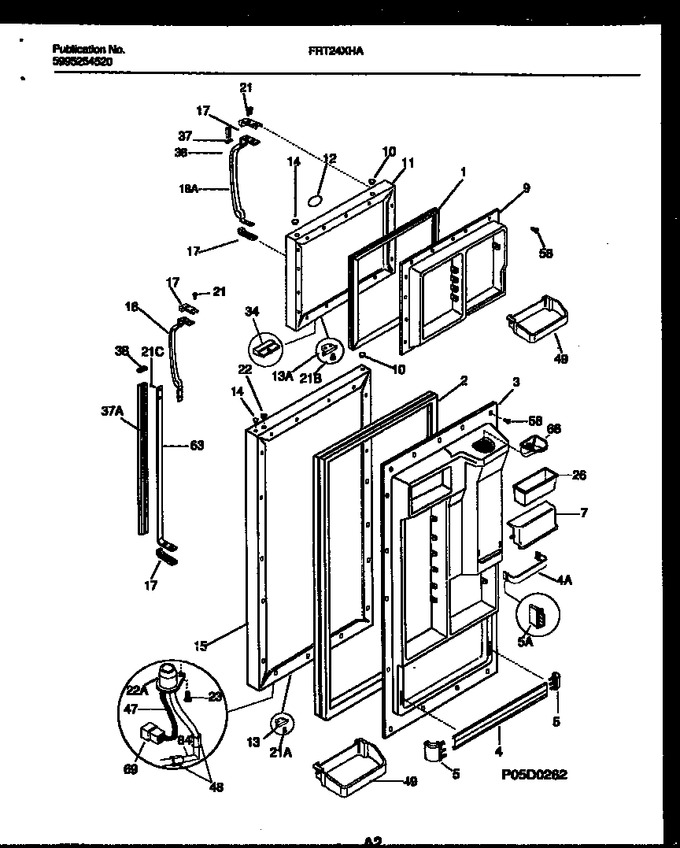

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303300005 | Gasket-frzr Door, Magnetic, Black |
|
- | |||||
| 2 | 5303300006 | Gasket-refr Door, Magnetic, Black |
|
- | |||||
| 3 | 215365601 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516218 | Rack, Door |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 215552601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303304566 | Door, Dairy |
|
- | |||||
| 9 | 215365501 | Panel - Inner Door, Frzr |
|
- | |||||
| 10 | 5303299154 | Plug-button, Black, Hinge Brg Hole |
|
- | |||||
| 11 | 215210418 | Panel-frzr Door, Black, W/foam Insulatn |
|
- | |||||
| 12 | 215018918 | Nameplate Assy, Black |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 14 | 215352118 | Plug-button, Black, Handle Mtg |
|
- | |||||
| 15 | 215622218 | Panel,refr Door, Black, W/foam Insulatn |
|
- | |||||
| 17 | 218025603 | Handle End, Black |
|
- | |||||
| 18 | 215983203 | Handle-door, Black, Refr |
|
- | |||||
| 21 | 215201400 | Screw-handle Brkt Mtg, Torx Flat Head, 8-18(ab) X 5/8 |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 26 | 5303288969 | Container-egg |
|
- | |||||
| 34 | 215423600 | Bumper-light Switch |
|
- | |||||
| 37 | 215268107 | Trim-handle, 1.27``, Black, Upper |
|
- | |||||
| 38 | 215117301 | Band-decorative,handle |
|
- | |||||
| 47 | 215683000 | Harness, Wiring, Door |
|
- | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 49 | 215441605 | Bin-door, Gallon |
|
- | |||||
| 49 | 5303297839 | Bin-door, 2-liter |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 63 | 215209500 | Rail-handle Trim Mtg |
|
- | |||||
| 68 | 215327001 | Chute, Ice |
|
- | |||||
| 69 | 215341900 | Connector-door Harn |
|
- | |||||
| 84 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| 99028 | 5303917276 | Instulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 215030018 | Door Stop, Black, Frzr |
|
$ 26.78 | |||||
| 18A | 215981303 | Handle-door, Black, Frzr |
|
- | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 21B | 215218700 | Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4 |
|
- | |||||
| 21C | 215732700 | Screw, Pan Head, 10-12 X 1/2 |
|
- | |||||
| 22A | 215615300 | Bushing-door,bronze |
|
- | |||||
| 37A | 215268106 | Trim-handle, 23.97``, Black, Lower |
|
- | |||||
| 4A | 215693900 | Rack, Door, Short, W/end Caps |
|
- | |||||
| 51B | 215133300 | Insulation-air Duct, Front (non-illustrated) |
|
- | |||||
| 5A | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 |
