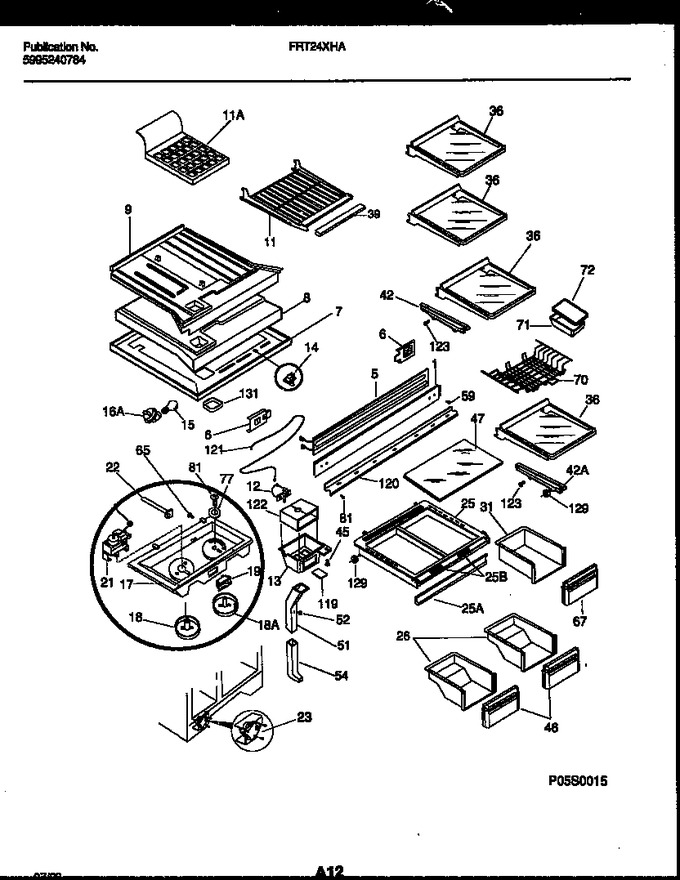

02 - Door Parts


04 - Cabinet Parts


07 - Shelves And Supports


09 - System And Automatic Defrost Parts


10 - Ice Maker And Installation Parts


12 - Ice Door, Dispenser And Water Tanks


15 - Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300209		Mullion, White		Appelez-nous	-
5	215527200		Heater, Mullion, 115v		Appelez-nous	-
6	215096700		Tapping Plate,mullion Mtg,(2)		Appelez-nous	-
7	215028102		Top Panel-refr		Appelez-nous	-
8	215038602		Divider, Styrofoam		Appelez-nous	-
9	215019800		Bottom Panel, Frzr		Appelez-nous	-
11	5303292429		Shelf, Freezer, Cantilever, Wide, Rh		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215132600		Cover-air Deflector		Appelez-nous	-
14	241547902		Switch-light/lamp   (Replaces: 215486600)			Immediately	$ 23.25
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303292409		Box-control		Appelez-nous	-
18	5303292410		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303292452		Control-temperature				$ 183.12
22	5303274945		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
25	215216608		Cover, Crisper Pan, With Beam, Trim, Humid Cont		Appelez-nous	-
26	5303292432		Pan, Crisper, (2)		Appelez-nous	-
31	5303292434		Pan-meat		Appelez-nous	-
36	215406101		Shelf, Cantilever, ``spill, Safe``, Half, (4)		Appelez-nous	-
39	215217542		Trim-freezer Shelf		Appelez-nous	-
42	215002301		Hanger-deli Tray, Lh				$ 65.82
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303288970		Front, Crisper Pan, (2)		Appelez-nous	-
47	5303292438		Insert-pan Cover, Glass		Appelez-nous	-
51	215132801		Duct, Meat Keeper, Upper		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
65	5303274946		Rivet, Plastic		Appelez-nous	-
67	5303292433		Front, Meat Pan		Appelez-nous	-
70	215453001		Tray-sliding, Corning Dish		Appelez-nous	-
71	5303275753		Dish-corning Glass		Appelez-nous	-
72	5303275754		Cover-corning Dish		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	215097102		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	215132502		Block, Air Deflector		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
129	5303299152		Roller-hanger				$ 12.34
131	215379800		Gasket-ice Discharge		Appelez-nous	-
80247	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	215309601		Shelf-freezer, Plastic		Appelez-nous	-
121A	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
129A	215005101		Screw-roller, 8-10 X 7/16 (non-illustrated)   (Replaces: 215005100)				$ 14.89
129B	5303299153		Bearing-roller (non-illustrated)				$ 5.09
12A	215363800		Spacer-air Deflectr(non-illustrated)		Appelez-nous	-
12B	215363900		Washer-air Deflectr (non-illustrated)		Appelez-nous	-
13A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	215280700		Nut-anchor, Cont Box Cover (non-illustrated)		Appelez-nous	-
18A	5303292411		Knob-temp Control, Frzr		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	215277000		Cover-defrost Timer, Top		Appelez-nous	-
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23C	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
25A	5303300010		Trim-crisper Cover		Appelez-nous	-
25B	5303292403		Control, Humidity		Appelez-nous	-
42A	5303209273		Hanger-pan/tray, Rh (non-illustrated)				$ 60.06
42A	215002401		Hanger-deli Tray, Rh (non-illustrated)				$ 85.84
42A	5303209272		Hanger-pan/tray, Lh				$ 90.83
51A	215133200		Insulation-air Duct, Rear (non-illustrated)		Appelez-nous	-
51B	215133300		Insulation-air Duct, Front (non-illustrated)		Appelez-nous	-
52A	215133000		Damper-air, Meat Kpr Duct (non-illustrated)		Appelez-nous	-
59B	215069501		Cap-mullion, Screw, White (non-illustrated)		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	215771700		Gasket, Ice Chute (non Illustrated)		Appelez-nous	-
