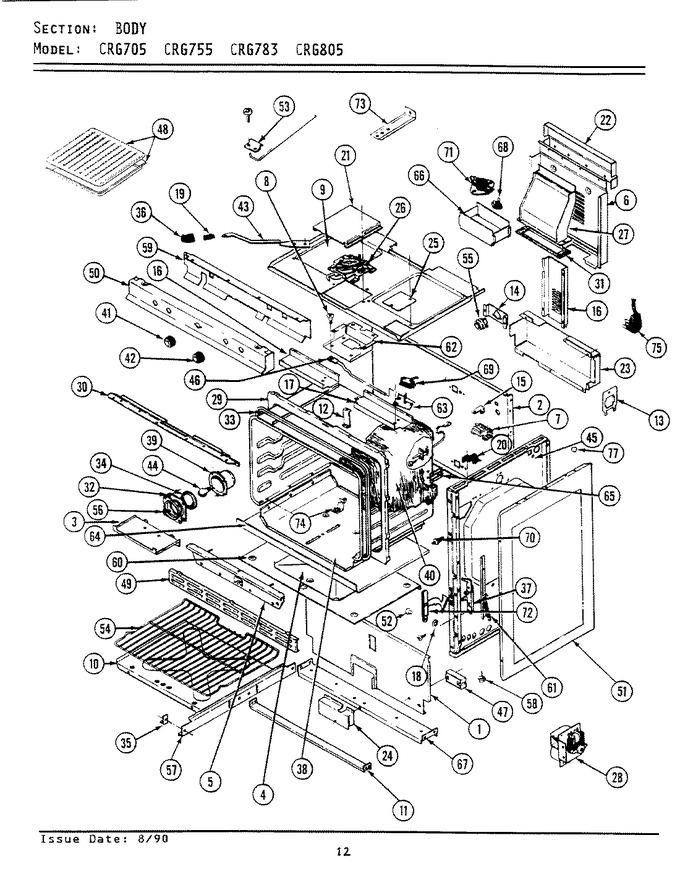

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F066-45		Back, Broiler Section	00	Appelez-nous	-
2	4002F094-80		Back, Main	00	Appelez-nous	-
3	3601W130-45		Baffle, Bake & Broil	00	Appelez-nous	-
4	3601F116-45		Baffle	00	Appelez-nous	-
5	3601W125-19		Baffle Oven Front	17	Appelez-nous	-
5	3601W125-15		Baffle, Ovn Front	00	Appelez-nous	-
6	3601F112-51		Baffle, Flue Box	00	Appelez-nous	-
7	7401P004-60		Block, Disconnect Cap	00	Appelez-nous	-
7	7412P005-60		Ballast	00	Appelez-nous	-
8	7116P003-60		Bolt	00	Appelez-nous	-
9	4011F200-19		Bottom Burner Box	22	Appelez-nous	-
9	4011F178-19		Bottom Burner Box	08	Appelez-nous	-
10	2205F020-21		Bottom, Oven	15	Appelez-nous	-
10	W10124403		Bottom, Oven	00	Appelez-nous	-
11	3802F003-80		Brace	00	Appelez-nous	-
12	3801F093-51		Bracket	00	Appelez-nous	-
13	3801F022-45		Bracket, Disconnect	00	Appelez-nous	-
14	3801F024-51		Bracket	00	Appelez-nous	-
15	3801F049-34		Bracket,control Panel (l)	00	Appelez-nous	-
15	3801F047-34		Bracket,control Panel (r)	00	Appelez-nous	-
16	3818F032-80		Channel - Air Duct	00	Appelez-nous	-
17	3818F027-45		Channel, Switch	00	Appelez-nous	-
18	7112P019-60		Clip, Hinge Pin	00	Appelez-nous	-
19	7112P003-60		Clip, Latch Handle	00	Appelez-nous	-
20	7112P073-60		Clip, Top Retainer	00	Appelez-nous	-
21	4005F137-80		Cover, Catch Assy.	00	Appelez-nous	-
22	3601F107-51		Baffle, Flue Box Top	00	Appelez-nous	-
23	4005F174-80		Cover, Module	00	Appelez-nous	-
24	4005F258-51		Cover, Oven Valve	00	Appelez-nous	-
25	4005F139-51		Cover, Switch	00	Appelez-nous	-
26	8002P015-60		Catch, Dr Lk	00	Appelez-nous	-
27	4006W026-15		Box, Flue	00	Appelez-nous	-
28	7427P002-60		Fan Assembly	00	Appelez-nous	-
29	2201F061-19		Front, Oven Upper	17	Appelez-nous	-
29	2201F061-23		Front, Oven Upper	00	Appelez-nous	-
30	4012F013-80		Front, Burner Box	00	Appelez-nous	-
31	7201P013-60		Gasket	00	Appelez-nous	-
32	7201P015-60		Gasket, Lamp Retainer	00	Appelez-nous	-
33	7201P036-60		Gasket, Oven	00			$ 118.90
34	7902P057-60		Glass, Lamp Guard	00	Appelez-nous	-
35	8016P005-60		Glide, Front	00	Appelez-nous	-
36	7701P068-60		Handle, Latch (blk)	00	Appelez-nous	-
37	3418F029-34		Hinge, Oven Door (lt)	00	Appelez-nous	-
37	3418F030-34		Hinge, Oven Door (rt)	00	Appelez-nous	-
38	4001F036-45		Housing, Bake Burner	00	Appelez-nous	-
39	4001F020-23		Housing, Lamp	00	Appelez-nous	-
39	7201P014-60		Gasket, Housing	00	Appelez-nous	-
40	7002P055-60		Insulation, Bottom	00	Appelez-nous	-
40	7002P047-60		Insulation, Wrapper	00	Appelez-nous	-
40	7002P027-60		Insulation, Rear	00	Appelez-nous	-
41	7731P033-60		Knob, Thermostat	00	Appelez-nous	-
41	7711P353-60		Knob, Selector	00	Appelez-nous	-
42	7733P036-60		Knob, Valve	00	Appelez-nous	-
42	7733P051-60		Knob, Valve	13	Appelez-nous	-
43	8009P019-60		Lever, Door Lock	22	Appelez-nous	-
43	8009P010-60		Lever, Door Lock	00	Appelez-nous	-
44	40A15		Bulb, Oven   (Replaces: 7407P026-60)	00		Immediately	$ 1.98
45	4009W038-80		Lining Assy, Inner Side	00	Appelez-nous	-
45	4009W037-80		Lining Assy, Inner Side	00	Appelez-nous	-
46	7807P012-60		Link, Door Lock	22	Appelez-nous	-
46	7807P004-60		Link, Switch	00	Appelez-nous	-
47	7431P006-60		Module, Spark	00	Appelez-nous	-
48	Y3413F01619		Insert, Broil Pan	23	Appelez-nous	-
48	4396923		Pan, Broil   (Replaces: 3401F004-19)	00		Immediately	$ 52.04
48	Y3401F02019		Pan, Broil	23	Appelez-nous	-
48	4396923		Insert, Pan   (Replaces: 3413F002-15)	00		Immediately	$ 52.04
49	2614F008-80		Panel, Lower Front	00	Appelez-nous	-
49	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
50	7712A047-60		Trim Assy, Manifold	00	Appelez-nous	-
51	2618F052-74		Panel, Side (alm)	00	Appelez-nous	-
51	2618F073-70		Panel, Side (black)	03	Appelez-nous	-
51	2618F073-74		Panel, Side (alm)	03	Appelez-nous	-
52	7113P002-60		Pin, Hinge	00			$ 9.05
53	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
53	3805F002-34		Clamp, Window Assy.	00	Appelez-nous	-
53	3807F226-34		Prop, Main Top	00	Appelez-nous	-
54	7801P029-60		Rack, Oven	00	Appelez-nous	-
55	7408P002-60		Receptacle, Lamp	00	Appelez-nous	-
56	3804F012-45		Retainer, Lamp Guard	00	Appelez-nous	-
57	3406F025-51		Runner,outer	00	Appelez-nous	-
57	3406F027-51		Runner, Outer	05	Appelez-nous	-
58	Y7101P25460		Leg, Leveling	00	Appelez-nous	-
59	3604F085-51		Shield, Manifold Cov	00	Appelez-nous	-
60	3604F083-45		Shield, Svc Drawer	00	Appelez-nous	-
61	WP7803P058-60		Spring, Ov Dr   (Replaces: 7803P055-60)	00			$ 16.55
62	3807F195-45		Support, Catch Assy.	00	Appelez-nous	-
63	3807F193-45		Support, Lock Switch	00	Appelez-nous	-
64	3807W207-45		Support, Ov Bot Bar Assy	00	Appelez-nous	-
65	3807F205-45		Support, Oven Rear	00	Appelez-nous	-
66	3807F219-51		Support, Therm Disc	00	Appelez-nous	-
67	3807F329-45		Support, Valve	00	Appelez-nous	-
68	7403P187-60		Switch, Hi Limit	00	Appelez-nous	-
69	7403P077-60		Switch----na	00	Appelez-nous	-
70	7403P105-60		Switch, Push (oven Lamp)	00	Appelez-nous	-
71	7403P091-60		Switch, Thermal	00	Appelez-nous	-
72	3420A033-34		Stop, Oven Door	00	Appelez-nous	-
73	3801F198-51		Bracket, Tie-down	00	Appelez-nous	-
73	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	16		Immediately	$ 4.69
74	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	00		Immediately	$ 11.07
75	7402P014-60		Cord, Power	00	Appelez-nous	-
75	7401P004-60		Block, Disconnect Cap	00	Appelez-nous	-
75	8007P003-60		Bushing, Snap	00	Appelez-nous	-
77	8010P048-60		Spacer, Main Top	00	Appelez-nous	-
77	8003P010-60		Bumper, Main Top	03	Appelez-nous	-
78	3818F025-45		Channel, Air	00	Appelez-nous	-
