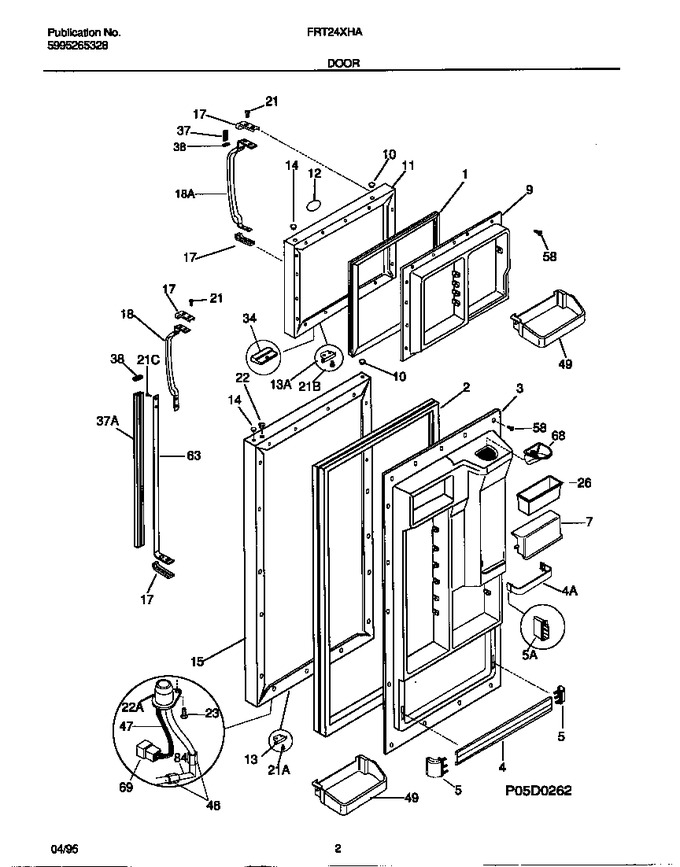

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776704		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732408		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215365601		Panel-inner Door, Refr		Appelez-nous	-
4	215693900		Rack, Door, Short, W/end Caps		Appelez-nous	-
4	215516218		Rack, Door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303304566		Door, Dairy		Appelez-nous	-
9	215365501		Panel - Inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215747811		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
12	215008602		Label-nameplate, Almond		Appelez-nous	-
13	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215622211		Panel,refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	218025602		Handle End, Dark Putty				$ 18.34
18	215981302		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
18	215983202		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	5308000039		Screw		Appelez-nous	-
21	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
21	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
26	5303288969		Container-egg		Appelez-nous	-
34	215423600		Bumper-light Switch		Appelez-nous	-
37	218025407		Trim-handle,1.27``,dark Putty,upper		Appelez-nous	-
37	218025406		Trim-handle, 23.97, Dark Putty, Lower		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
47	215683000		Harness, Wiring, Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215209500		Rail-handle Trim Mtg		Appelez-nous	-
68	215327001		Chute, Ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*62520	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
49A	215441605		Bin-door, Gallon		Appelez-nous	-
49B	5303297839		Bin-door, 2-liter		Appelez-nous	-
