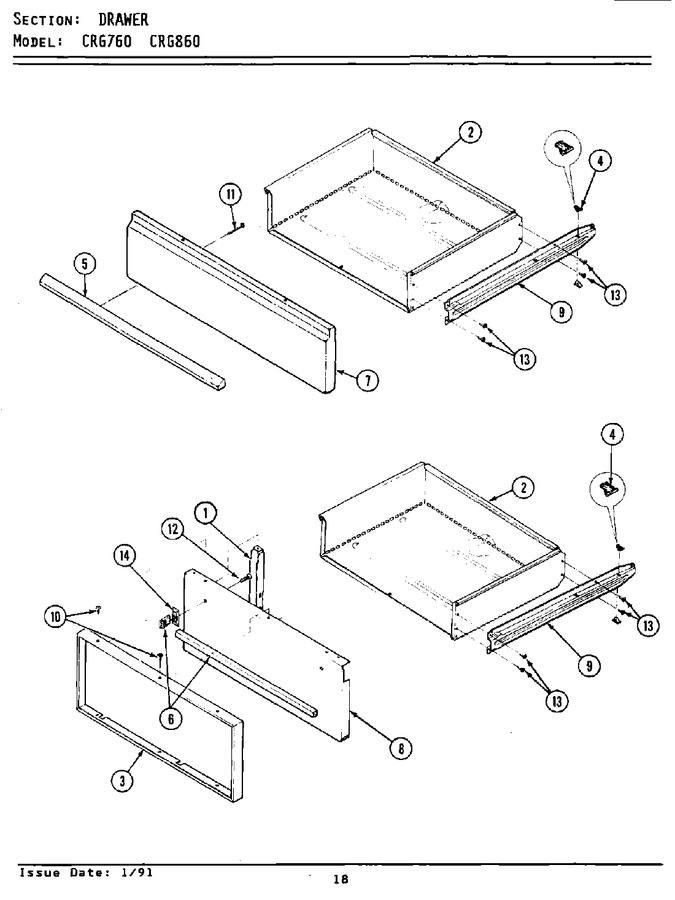

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F115-51 | Bracket, Drawer | 00 |
|
- | ||||
| 1 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 2 | 3405F008-80 | Drawer, Service | 00 |
|
- | ||||
| 4 | 8016P004-60 | Glide, Drawer | 00 |
|
- | ||||
| 4 | 8016P009-60 | Glide, Drawer | 00 |
|
- | ||||
| 5 | 7701P084-60 | Handle, Drawer | 00 |
|
- | ||||
| 7 | 2416F031-74 | Panel, Drawer Alm | 00 |
|
- | ||||
| 9 | 3406F026-80 | Runner, Inner | 00 |
|
- | ||||
| 11 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 00 |
|
$ 5.82 | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 |
