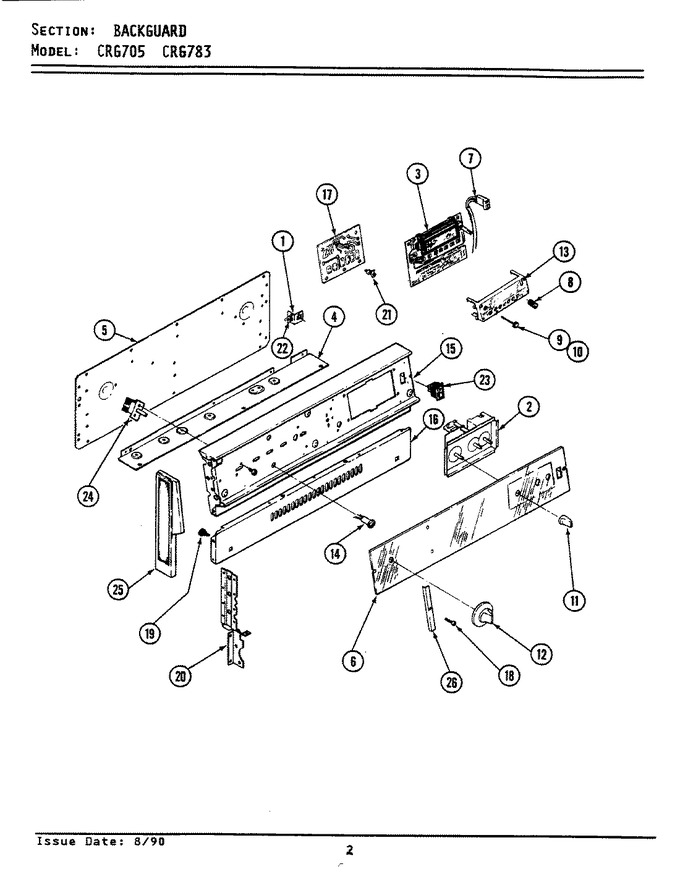

01 - Body
02 - Control
03 - Control Panel
04 - Door
05 - Drawer
06 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7401P015-60 | Block, Terminal | 00 |
|
- | ||||
| 1 | 7712P029-60 | Clip, Wire | 00 |
|
- | ||||
| 1 | 3801F096-45 | Bracket, H.l. Swit | 00 |
|
- | ||||
| 3 | 7601P101-60 | Clock | 00 |
|
- | ||||
| 3 | 7601P181-60 | Clock, Electronic | 14 |
|
- | ||||
| 3 | 7601P155-60 | Clock | 05 |
|
- | ||||
| 3 | 7601P163-60 | Clock | 08 |
|
- | ||||
| 4 | 4005F155-80 | Cover, Bottom Bkdg Wire | 00 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 5 | 4005F194-80 | Cover, Backguard | 00 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 6 | 7910P073-60 | Glass, Bkgd | 00 |
|
- | ||||
| 7 | 5170A007-60 | Harness, Sensor | 00 |
|
- | ||||
| 7 | 5170A067-60 | Wire Harness, Clock | 00 |
|
- | ||||
| 7 | 5170P100-60 | Harness, Oven Sensor | 08 |
|
- | ||||
| 8 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 08 |
|
$ 12.13 | ||||
| 8 | 7711P172-60 | Knob, Clock (blk) | 00 |
|
$ 23.55 | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 00 |
|
$ 19.90 | ||||
| 10 | 7711P452-60 | Button, Clock Set | 08 |
|
- | ||||
| 10 | 7711P335-60 | Button, Set | 00 |
|
- | ||||
| 13 | 7730P005-60 | Lens, Clock | 00 |
|
- | ||||
| 14 | 7103P053-60 | Nut, Push-on End Cap | 00 |
|
- | ||||
| 15 | 2601W271-84 | Bkgd Assy, Alm | 00 |
|
- | ||||
| 15 | 2601W329-84 | Panel, Backguard Alm | 08 |
|
- | ||||
| 16 | 2620W018-90 | + Panel, Bkgd Lower | 00 |
|
- | ||||
| 17 | 7428P006-60 | Relay, Board Assy. | 00 |
|
- | ||||
| 18 | 7101P008-60 | Screw | 00 |
|
- | ||||
| 19 | 8010P069-60 | Spacer, Hinge (main Top) | 00 |
|
$ 8.57 | ||||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 20 | 3807W224-80 | Support, End (left) | 00 |
|
- | ||||
| 20 | 3807W225-80 | Support, End (right) | 00 |
|
- | ||||
| 21 | 8004P020-60 | Support, Relay Board | 00 |
|
- | ||||
| 22 | 7403P188-60 | Switch | 00 |
|
- | ||||
| 23 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 00 |
|
$ 91.35 | ||||
| 25 | 7726P032-60 | Trim, Bkgd End (rt) | 00 |
|
- | ||||
| 25 | 7726P031-60 | Trim, Bkgd End (lt) | 00 |
|
- | ||||
| 26 | 7720P088-60 | Trim, Glass Ret | 00 |
|
- | ||||
| 26 | 7109P010-60 | Washer, Nylon | 00 |
|
- |
