SELECT A DIAGRAM
01 - Body

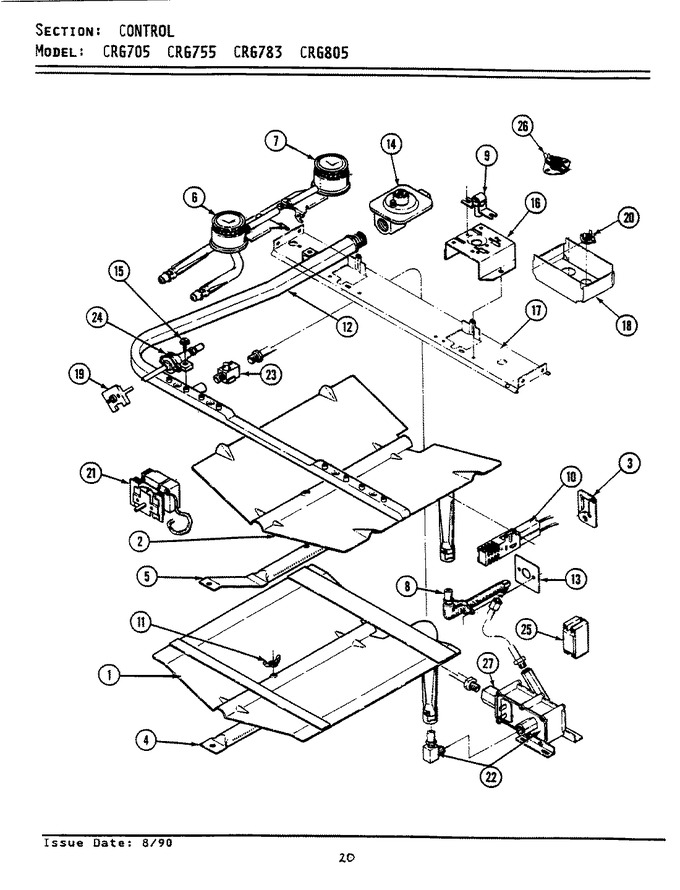

02 - Control
03 - Control Panel
04 - Door
05 - Drawer
06 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-15 | Baffle | 00 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 00 |
|
- | ||||
| 3 | 3801F179-45 | Bracket, Burner Lighter | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 4 | 7505P101-60 | Burner | 00 |
|
- | ||||
| 4 | 3403D027-45 | Burner, Oven | 18 |
|
- | ||||
| 5 | 7505P100-60 | Burner, Bake & Broil | 00 |
|
- | ||||
| 5 | 3403D028-45 | Burner, Broil | 18 |
|
- | ||||
| 8 | 7507P028-60 | Fitting, Broil Burner | 00 |
|
- | ||||
| 9 | 7432P029-60 | Igniter, Top Burner (lt) | 00 |
|
- | ||||
| 9 | 7432P028-60 | Igniter, Top Burner (rt) | 00 |
|
- | ||||
| 10 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 00 |
|
Immediately | $ 60.44 | |||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 06 |
|
Immediately | $ 60.44 | |||
| 11 | 7103P030-60 | Nut, Wing | 00 |
|
$ 6.37 | ||||
| 12 | 7513P103-60 | Pipe Manifold | 14 |
|
- | ||||
| 12 | 7513P044-60 | Pipe, Manifold | 00 |
|
- | ||||
| 14 | 7510P004-60 | Regulator, Pressure | 00 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 15 | 7101P296-60 | Screw | 14 |
|
- | ||||
| 16 | 3807F201-45 | Support, Top Pilot | 00 |
|
- | ||||
| 17 | 3807F347-51 | Support, Top Burner | 00 |
|
- | ||||
| 18 | 3807F219-51 | Support, Therm Disc | 00 |
|
- | ||||
| 18 | 7403P187-60 | Switch, Hi Limit | 00 |
|
- | ||||
| 19 | 7403P259-60 | Switch | 20 |
|
- | ||||
| 19 | 7403P216-60 | Switch, Top Burner | 14 |
|
- | ||||
| 19 | 7403P285-60 | Switch, Igniter | 23 |
|
$ 54.75 | ||||
| 19 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 00 |
|
$ 118.82 | ||||
| 22 | 3414F048-44 | Tubing, 3/8 X 51-1/2 | 00 |
|
- | ||||
| 22 | 7501P091-60 | Valve, Broil & Bake | 10 |
|
- | ||||
| 22 | 7501P034-60 | Valve, Broil & Bake | 00 |
|
- | ||||
| 22 | 7501P095-60 | Valve, Broil & Bake - Nat | 12 |
|
- | ||||
| 22 | 3414F057-44 | Tubing, 3/8 X 20-3/4 | 00 |
|
- | ||||
| 23 | 7502P002-60 | Valve, Shut Off | 00 |
|
- | ||||
| 24 | 7502P224-60 | Valve | 21 |
|
- | ||||
| 24 | 7502P145-60 | Valve, Top | 14 |
|
- | ||||
| 24 | 7502P111-60 | Valve, Burner | 00 |
|
- |
