01 - Broiler Drawer

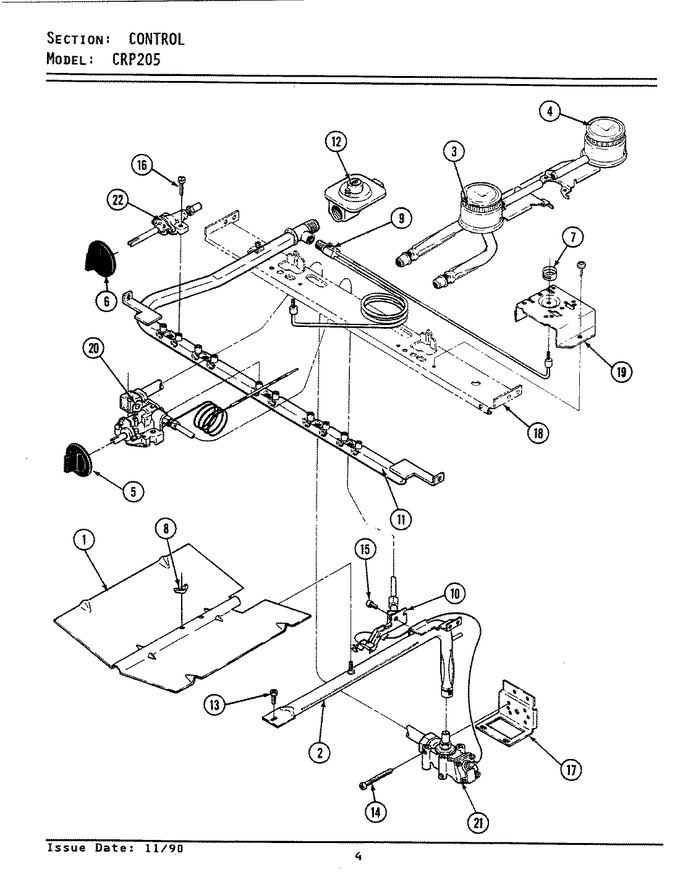

02 - Control (crp205)
03 - Control Panel
04 - Door
05 - Oven Body/main Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 00 |
|
- | ||||
| 2 | 3403D027-45 | Burner, Oven | 07 |
|
- | ||||
| 2 | 3403A015-45 | Burner Oven | 05 |
|
- | ||||
| 2 | 7505P101-60 | Burner | 00 |
|
- | ||||
| 3 | 7505P170-60 | Burner-top Front | 00 |
|
- | ||||
| 4 | 7505P171-60 | Burner, Top Rear | 00 |
|
- | ||||
| 5 | 7731P034-60 | Knob, Thermostat | 00 |
|
- | ||||
| 6 | 7733P037-60 | Knob, Valve | 00 |
|
- | ||||
| 7 | 7507P022-60 | Shield, Top Brn Pilo | 00 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 00 |
|
$ 6.37 | ||||
| 9 | 7505P081-60 | Burner, Pilot | 00 |
|
- | ||||
| 9 | 7103P070-60 | Nut, Top Pilot | 00 |
|
- | ||||
| 10 | 7432P068-60 | Lighter Pilot | 07 |
|
- | ||||
| 10 | 1566267 | Pilot Assy. | 00 |
|
- | ||||
| 11 | 7513P102-60 | Manifold Pipe | 04 |
|
- | ||||
| 11 | 7513P131-60 | Pipe Manifold | 07 |
|
- | ||||
| 11 | 7513P028-60 | Pipe, Manifold | 00 |
|
- | ||||
| 12 | 7510P002-60 | Regulator, Pressure | 00 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 14 | 7101P025-60 | Screw | 00 |
|
- | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P067-60) | 00 |
|
$ 4.29 | ||||
| 16 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 16 | 7101P044-60 | Screw, Valve | 07 |
|
- | ||||
| 16 | 7101P296-60 | Screw | 04 |
|
- | ||||
| 17 | 3807F120-34 | Support | 00 |
|
- | ||||
| 18 | 3807F347-51 | Support, Top Burner | 00 |
|
- | ||||
| 19 | 3807F200-45 | Support, Top Pilot | 00 |
|
- | ||||
| 20 | 7515P026-60 | Thermostat | 04 |
|
- | ||||
| 20 | 3414F062-44 | Tubing, 3/16`` X 54``----na | 00 |
|
- | ||||
| 20 | 7515P015-60 | Thermostat Oven | 00 |
|
- | ||||
| 20 | 3414F050-44 | Tubing 3/8 X 59 | 00 |
|
- | ||||
| 20 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- | ||||
| 20 | 3414F099-44 | Tubing, Oven (3/8``) | 07 |
|
- | ||||
| 20 | 1555261K | Nut & Ferrule (3/16``) | 00 |
|
- | ||||
| 20 | 7515P032-60 | Thermostat | 07 |
|
- | ||||
| 21 | 7501P101-60 | Valve, Oven | 07 |
|
- | ||||
| 21 | 1555222 | Nut, Loxit (3/16``) | 00 |
|
- | ||||
| 21 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- | ||||
| 21 | 7501P061-60 | Valve, Oven | 00 |
|
- | ||||
| 22 | 7502P132-60 | Valve, Burner | 04 |
|
- | ||||
| 22 | 7502P109-60 | Valve, Top Burner | 00 |
|
- | ||||
| 22 | 7502P174-60 | Valve, Top Burner | 07 |
|
- |
