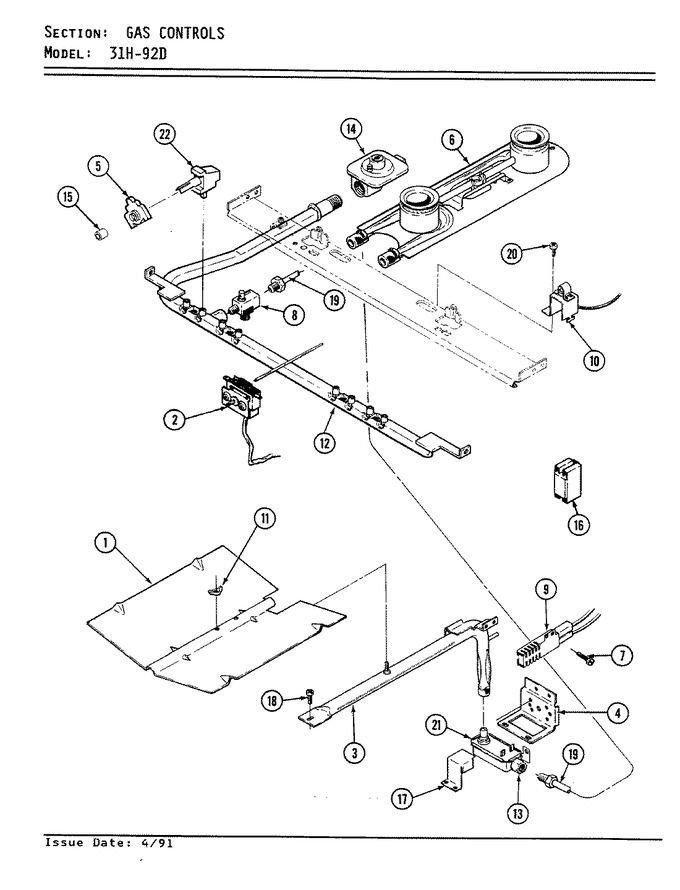

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F181-45		Baffle, Oven Burner	01	Appelez-nous	-
2	7404P062-60		Thermostat, Oven	01	Appelez-nous	-
2	7101P279-60		Screw W/washer	01	Appelez-nous	-
2	3604F030-51		Shield, Themostat	01	Appelez-nous	-
3	3403A015-45		Burner Oven	01	Appelez-nous	-
4	3807F120-34		Support	01	Appelez-nous	-
5	7403P235-60		Switch, Lighter Burner	01	Appelez-nous	-
6	3412A004-23		Uni-burner Assy	01	Appelez-nous	-
7	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	01			$ 4.29
8	7502P002-60		Valve, Shut Off	01	Appelez-nous	-
9	12400035		Igniter, Oven   (Replaces: 7432P067-60)	01		Immediately	$ 60.44
9	7401P018-60		Block	01	Appelez-nous	-
10	7432P008-60		Igniter, Top (lt)	01	Appelez-nous	-
10	7432P015-60		Igniter, Top Burner	01			$ 53.77
11	7103P030-60		Nut, Wing	01			$ 6.37
12	7513P101-60		Pipe, Manifold	01	Appelez-nous	-
13	1555251		Nut, Loxit (3/8``)	01	Appelez-nous	-
14	7510P002-60		Regulator, Pressure	01	Appelez-nous	-
15	7214P003-60		Sleeve	01	Appelez-nous	-
16	7101P003-60		Screw	01	Appelez-nous	-
16	7431P006-60		Module, Spark	01	Appelez-nous	-
17	4005F173-51		Cover, Valve Terminal	01	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
19	3414F049-44		Tubing, 3/8`` X 54.5``	01	Appelez-nous	-
20	WP4159193		Screw   (Replaces: 7118P004-60)	01			$ 4.29
21	WP4159193		Screw   (Replaces: 7101P112-60)	01			$ 4.29
21	7501P017-60		Valve, Oven	01	Appelez-nous	-
22	7101P296-60		Screw	01	Appelez-nous	-
22	7502P132-60		Valve, Burner	01	Appelez-nous	-
22	7502P174-60		Valve, Top Burner	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
