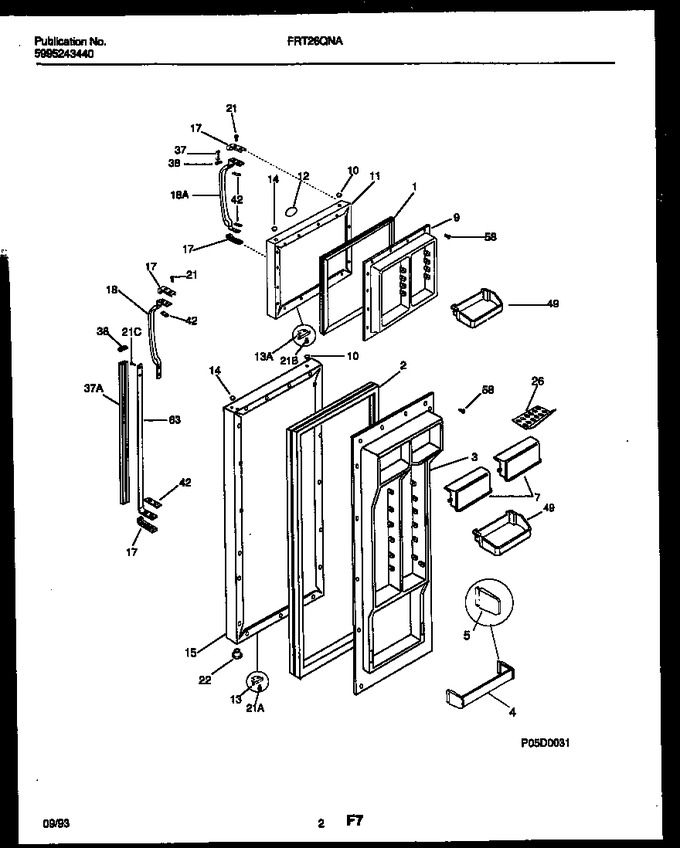

02 - Door Parts


04 - Cabinet Parts


06 - Shelves And Supports


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300005		Gasket-frzr Door, Magnetic, Black		Appelez-nous	-
2	5303300006		Gasket-refr Door, Magnetic, Black		Appelez-nous	-
3	215816801		Panel, Inner Door, Refr		Appelez-nous	-
4	215516218		Rack, Door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303292422		Door-dairy		Appelez-nous	-
9	215004301		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	215747818		Panel-frzr Door, Black, W/foam Insulatn		Appelez-nous	-
12	215018918		Nameplate Assy, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352118		Plug-button, Black, Handle Mtg		Appelez-nous	-
15	215210218		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
17	215188418		Handle End, Black		Appelez-nous	-
18	215190618		Handle-door, Black, Refr		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg, Water Clear   (Replaces: 5303284457)				$ 13.46
37	215268107		Trim-handle, 1.27``, Black, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
42	215209000		Shim-handle		Appelez-nous	-
49	215441601		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215209500		Rail-handle Trim Mtg		Appelez-nous	-
86911	5303917276		Instulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030018		Door Stop, Black, Frzr				$ 26.78
15A	215352218		Plug-button, Black, Refr Door Front (non-illustrated)		Appelez-nous	-
18A	215190518		Handle-door, Black, Frzr		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	215732700		Screw, Pan Head, 10-12 X 1/2		Appelez-nous	-
37A	215268106		Trim-handle, 23.97``, Black, Lower		Appelez-nous	-
