SELECT A DIAGRAM
01 - Cabinet
02 - Control Panel
03 - Door
04 - Heater
05 - Motor & Drive
06 - Tumbler
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

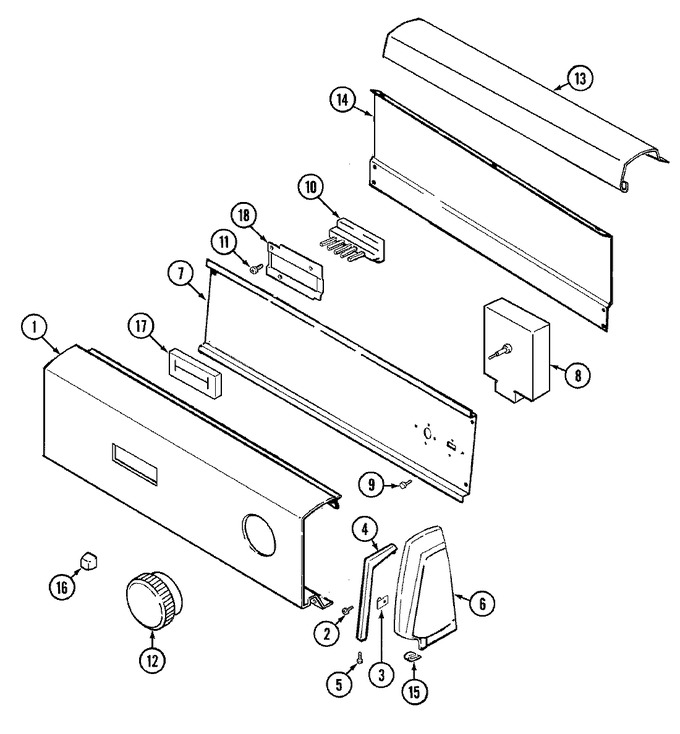

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001325 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 25-7649 | Screw | 10 |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 4 | 21001245 | Trim, Endcap (rt) (wht) | 10 |
|
- | ||||
| 4 | 21001246 | Trim, Endcap (lt) (wht) | 10 |
|
- | ||||
| 5 | 25-7760 | Screw | 10 |
|
- | ||||
| 6 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 6 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 7 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 7 | 21001266 | Shield, Control | 10 |
|
- | ||||
| 8 | 53-1811 | Timer | 10 |
|
- | ||||
| 8 | 31001069 | Resistor Assy. | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: 31001119) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 31001234 | Switch, Temperature | 10 |
|
- | ||||
| 11 | 25-7712 | Screw | 10 |
|
- | ||||
| 12 | 31001196 | Knob & Skirt Assy. (wht) | 10 |
|
- | ||||
| 13 | 21001423 | Cover, Control Panel (wht) | 10 |
|
- | ||||
| 14 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 14 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 15 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 16 | 35-3191 | Pushbutton (wht) | 10 |
|
- | ||||
| 17 | 35-3515 | Pad, Switch | 10 |
|
- | ||||
| 18 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 18 | 33-6621 | Bracket, Switch | 10 |
|
- | ||||
| 19 | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- | ||||
| 20 | 31001327 | Manual, Use & Care | 10 |
|
- | ||||
| 21 | 31001333 | Manual, Use & Care | 10 |
|
- |
