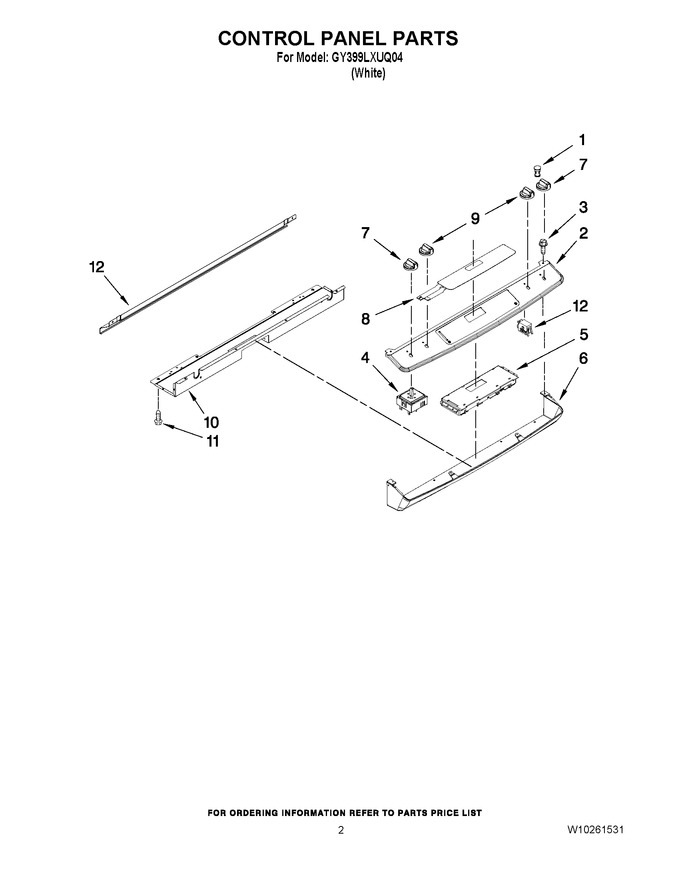

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | 7720P536-60 | Panel, Control (white) |
|
$ 149.10 | |||||
| 3 | W11846982 | Screw (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 4 | WP7403P238-60 | Switch, Infinte 6`` (lf,rr) (Replaces: 7403P373-60) |
|
Immediately | $ 78.52 | ||||
| 4 | WP74010824 | Switch, Infinte (8`` (rf,lr)) (Replaces: 7450P011-60) |
|
Immediately | $ 120.04 | ||||
| 5 | WP8507P392-60 | Control (Replaces: 8507P392-60) |
|
$ 507.16 | |||||
| 6 | W10185607 | Panel,control(lwr) (white) |
|
$ 125.65 | |||||
| 7 | 7737P415-60 | Knob (lf,rr) (white) |
|
$ 21.78 | |||||
| 8 | WPW10207935 | Switch, Membrane (white) (Replaces: W10207935) |
|
$ 347.49 | |||||
| 9 | 7737P418-60 | Knob (rf,lr) (white) |
|
$ 76.82 | |||||
| 10 | 3807F769-51 | Support, Control Panel |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 9.36 |
