SELECT A DIAGRAM

01 - Front View


02 - Front View (series 03)


03 - Rear View


04 - Control Panel (series 00)


05 - Control Panel (series 03)

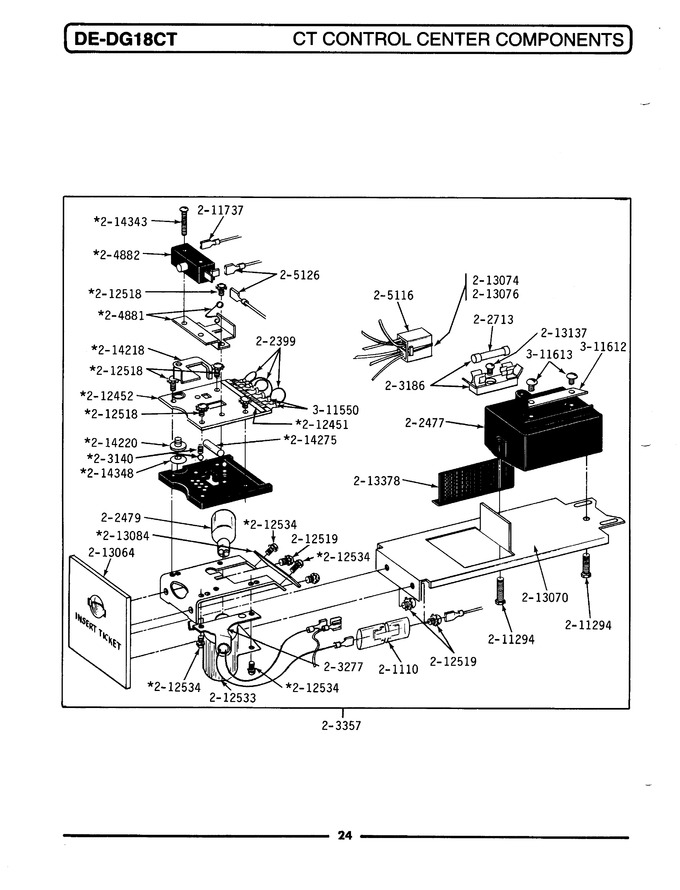

06 - Ca Control Center


07 - D0or Assembly


08 - Front Panel-rear View


09 - Front Panel & Door Assy (series 04)


10 - Front Panel & Door Assy (series 06)


11 - Tumbler Front, Lint Screen & Retainer


12 - Lint Screen, Tumbler (front & Back)


13 - Inlet Duct & Heater Assembly


14 - Motor, Blower, Base Frame & Thermostats


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	NLA		Mtg. Strap----na	00	Appelez-nous	-
003	NLA		Outer Case-white	00	Appelez-nous	-
004	NLA		Outer Case-harvest Wheat	00	Appelez-nous	-
005	NLA		Button Marker	00	Appelez-nous	-
006	211251		Screw	00	Appelez-nous	-
007	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
008	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
009	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	00			$ 6.47
010	NLA		Access Door For Timer	00	Appelez-nous	-
011	NLA		Gasket Under Control Center	00	Appelez-nous	-
012	NLA		Knob And Dial	00	Appelez-nous	-
013	NLA		Control Center-white	00	Appelez-nous	-
014	Y303222		Timer Rpr	00	Appelez-nous	-
015	Y304585		Timer Motor Rpr	00	Appelez-nous	-
016	910309		Washer	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
