SELECT A DIAGRAM
New Model Search:

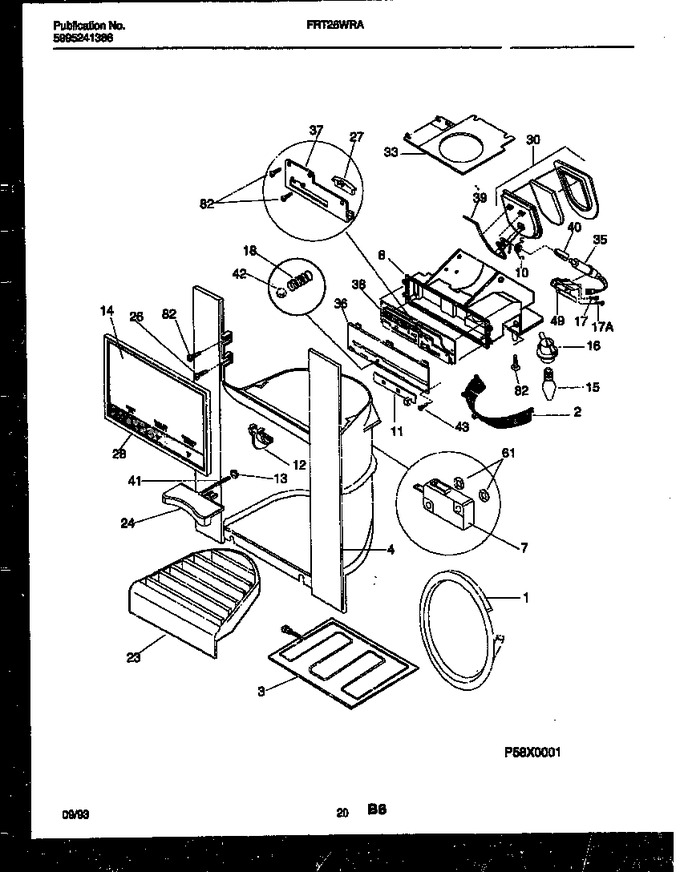

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215294102 | Tube-water Inlet, Formed, Plastic, Dispenser |
|
- | |||||
| 1 | 5318582501 | Tube-water Inlet, 93``, Plastic, Cut To Size |
|
- | |||||
| 2 | 215732111 | Deflector-ice Disp,almond |
|
- | |||||
| 3 | 215484300 | Heater-door Housing |
|
$ 40.85 | |||||
| 4 | 5303298525 | Housing-dispenser,almond |
|
- | |||||
| 7 | 215765600 | Switch-actuator, Micro |
|
- | |||||
| 8 | 215763500 | Module-dispenser |
|
- | |||||
| 10 | 215793600 | Spring, Dispenser Door |
|
- | |||||
| 11 | 215253300 | Slide-selector Sw, (pc Board) |
|
$ 30.80 | |||||
| 12 | 215766502 | Knob-selector,almond |
|
- | |||||
| 13 | 215748101 | Ring-snap,actuator |
|
$ 50.09 | |||||
| 14 | 215731600 | Label-module Cover, Almond |
|
- | |||||
| 15 | 215764500 | Light Bulb/lamp |
|
- | |||||
| 16 | 240548901 | Socket-light/lamp (Replaces: 215284900) |
|
$ 63.70 | |||||
| 17 | 215794400 | Screw,6 X 1/4 |
|
- | |||||
| 18 | 215760200 | Spring |
|
- | |||||
| 23 | 5303297845 | Drip Tray,almond |
|
$ 67.04 | |||||
| 24 | 215766302 | Actuator,almond |
|
- | |||||
| 26 | 215503203 | Screw,hilo Phil Pn Hd,10 X 1/2 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 27 | 215254700 | Cam-slide |
|
- | |||||
| 28 | 5303297847 | Cover-module,almond |
|
- | |||||
| 30 | 215753600 | Door Assy-ice,w/gasket,insul |
|
- | |||||
| 33 | 215280800 | Heater-disp Throat |
|
- | |||||
| 35 | 215793900 | Heat Motor |
|
- | |||||
| 36 | 215254400 | Cover-pc Board |
|
- | |||||
| 37 | 215763400 | Guide-cam |
|
- | |||||
| 38 | 215894601 | Pc Board |
|
- | |||||
| 39 | 215793700 | Wire-ice Door |
|
- | |||||
| 40 | 215794300 | Yoke-heat Motor |
|
- | |||||
| 41 | 215765400 | Spring-actuator |
|
$ 78.96 | |||||
| 42 | 215756000 | Ball |
|
- | |||||
| 43 | 215760300 | Screw,4 X 3/8 |
|
$ 9.35 | |||||
| 49 | 215794000 | Bracket-heat Motor |
|
$ 34.81 | |||||
| 61 | 215766000 | Ring-retainer,micro Switch |
|
$ 34.40 | |||||
| 82 | 215296300 | Screw, Cr Plask, 8-10 X 1/2 |
|
- | |||||
| 87648 | 215781700 | Clip-tube |
|
- | |||||
| 87648 | 215923400 | Washer-flat |
|
- | |||||
| 17A | 215840700 | Screw,truss Head,6-20 X 3/8 |
|
- | |||||
| 38A | 215630800 | Washer, Ext Tooth Lock, Light Switch, (non-illustrated) |
|
- | |||||
| 38B | 215631000 | Nut, Hex, Light Switch (non-illustrated) |
|
- | |||||
| 38C | 215763900 | Cap-light Switch (non-illustrated) |
|
- |
