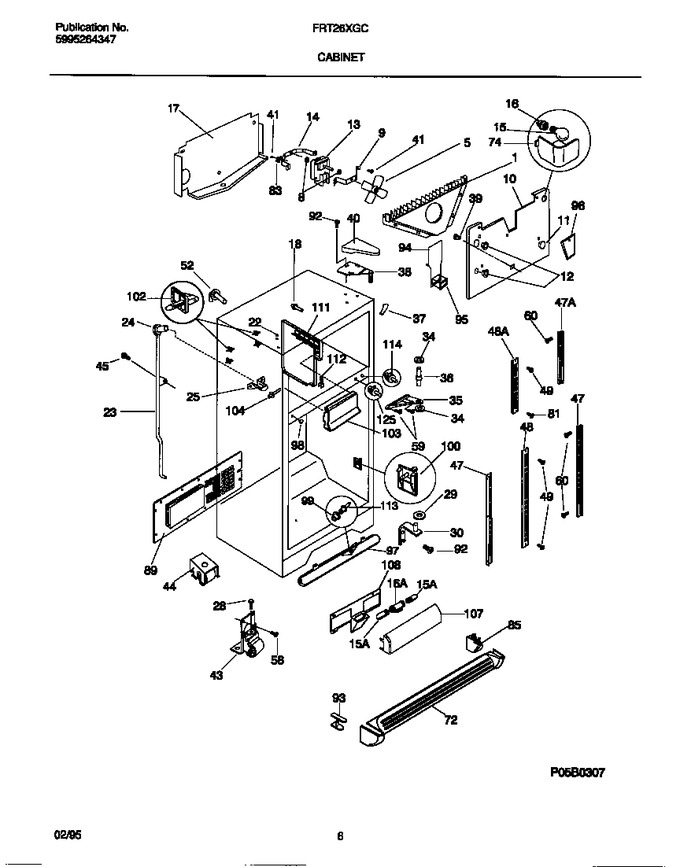

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5303300186		Cover, Evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
13	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated)			Immediately	$ 18.43
13	215464100		Motor-evap Fan		Appelez-nous	-
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	215812200		Light Bulb/lamp,25w				$ 16.54
16	5308000129		Socket-light/lamp				$ 62.16
17	5303292440		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
22	215134518		Plug-button, Black, Upr Hinge Holes		Appelez-nous	-
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303001361		Pin-mounting, Push-in, Plastic (not Illustrated)		Appelez-nous	-
25	5303292412		Spout-drain Tube				$ 13.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215744100		Washer, Od No. 10, Steel, Lower Hinge				$ 1.63
30	218157800		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30	5303289291		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
30	5303289290		Tapping Plate, Lh (not Illustrated)		Appelez-nous	-
34	215095400		Washer, Ctr Hnge Pin				$ 6.35
35	215002618		Bracket-ctr Hinge, Black				$ 50.77
36	215095900		Pin-center Hinge				$ 19.58
37	5303272428		Trim-cabinet Corner,black		Appelez-nous	-
38	218158000		Bracket-upper Hinge		Appelez-nous	-
39	08006983		Spacer-divider		Appelez-nous	-
40	218374403		Cover-upper Hinge, Black		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
43	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
43	5303289059		Roller Assy,front,(2)		Appelez-nous	-
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg, Side				$ 86.05
15A	218188900		Light Bulb/lamp, Crisper Light, (2)		Appelez-nous	-
16A	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
