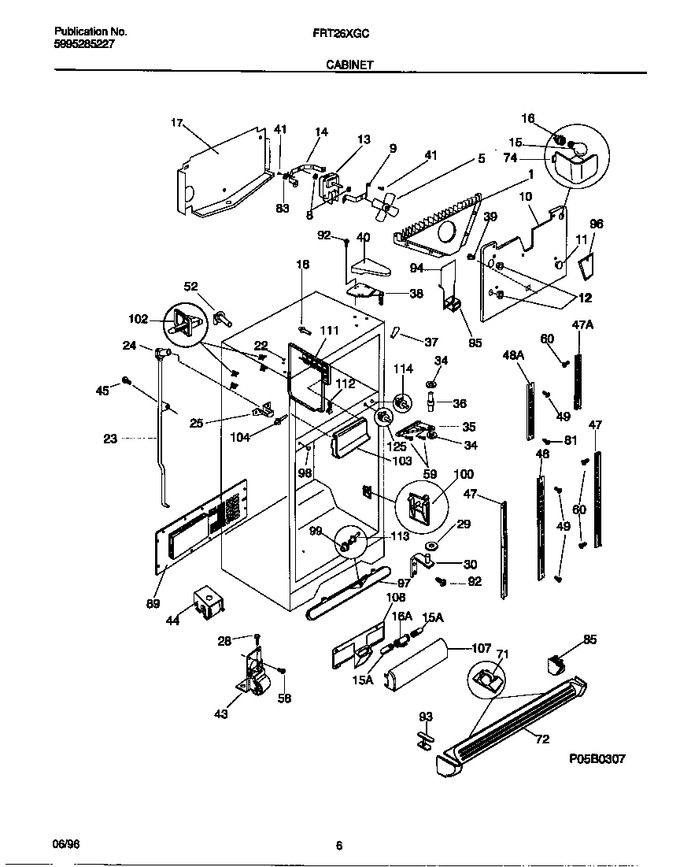

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5303300186		Cover, Evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
13	5300158289		Motor-evap Fan   (Replaces: 218661700)			Immediately	$ 149.94
13	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated)			Immediately	$ 18.43
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	218708700		Light Bulb/lamp, Crisper Light, (2)				$ 50.78
16	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
17	5303292440		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303001361		Pin-mounting, Push-in, Plastic (not Illustrated)		Appelez-nous	-
25	5303292412		Spout-drain Tube				$ 13.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215003200		Washer, .40x.63x .16,nylon				$ 54.86
30	218730800		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
30	218730900		Washer (not Illustrated)		Appelez-nous	-
30	218157800		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30	218730700		Tapping Plate, Lh (not Illustrated)				$ 28.08
34	215095400		Washer, Ctr Hnge Pin				$ 6.35
35	215002618		Bracket-ctr Hinge, Black				$ 50.77
36	215095900		Pin-center Hinge				$ 19.58
37	5303272428		Trim-cabinet Corner,black		Appelez-nous	-
38	218215216		Bracket-upper Hinge, With Closer, Black		Appelez-nous	-
39	08006983		Spacer-divider		Appelez-nous	-
40	218374406		Cover-upper Hinge, Black		Appelez-nous	-
41	218843801		Screw   (Replaces: 5303001001)				$ 14.41
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
43	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	215209100		Channel-shelf Mtg, Side, Frzr		Appelez-nous	-
48	215209200		Channel-shelf Mtg, Center Frzr		Appelez-nous	-
49	218362501		Screw, Hex Washer Head, 8-18ab X 1-1/4   (Replaces: 218362500)				$ 12.05
52	215454600		Tube-water Inlet				$ 81.11
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
71	218515401		Clip-grille				$ 17.72
72	218359610		Grille/kickplate, Black		Appelez-nous	-
74	215423500		Shield-light, Frzr		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
85	218359903		Cover-lower Hinge, Black		Appelez-nous	-
89	215176300		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362603		Plug-grille, Black				$ 5.77
94	218044800		Seal, Air Duct Cover (not Illustrated)		Appelez-nous	-
94	5303319993		Cover-air Duct		Appelez-nous	-
95	218663100		Gasket-air Duct Cvr		Appelez-nous	-
96	215775900		Cover Fan-access				$ 30.82
97	215571900		Water Tank Assy, Includes Tank, Grommets, Connectors		Appelez-nous	-
98	215099718		Plug-button, Black, Ctr Hinge Hole		Appelez-nous	-
99	5300186057		Grommet-tank				$ 28.98
100	5303288973		Support-pan Cover				$ 24.41
102	215134700		Support, Motor Brkt, & Shelf				$ 18.17
103	218368301		Door-ice Access, W/trim		Appelez-nous	-
104	5303001211		Support-ice Access Dr		Appelez-nous	-
104	3001212		Screw-ice Dr Supt, Cr Spcl Pan Hd, 8-15(a) X 1-5/8 (notillustrated)		Appelez-nous	-
107	218188800		Shield-light, Crisper				$ 37.41
108	218710800		Cover-wiring, Crisper Light		Appelez-nous	-
111	215309502		Divider-ice Maker		Appelez-nous	-
112	215734400		Nut-anchor, Im Divider		Appelez-nous	-
113	5308015614		Connector - Tube				$ 34.57
114	5303299156		Switch-light/lamp, Black				$ 45.10
125	215334202		Switch, Auger Kill, Black		Appelez-nous	-
*52561	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
15A	215812200		Light Bulb/lamp,25w				$ 16.54
16A	5308000129		Socket-light/lamp				$ 62.16
47A	218233300		Channel-shelf Mtg, Side				$ 86.05
48A	218487200		Channel-shelf Mtg, Center		Appelez-nous	-
