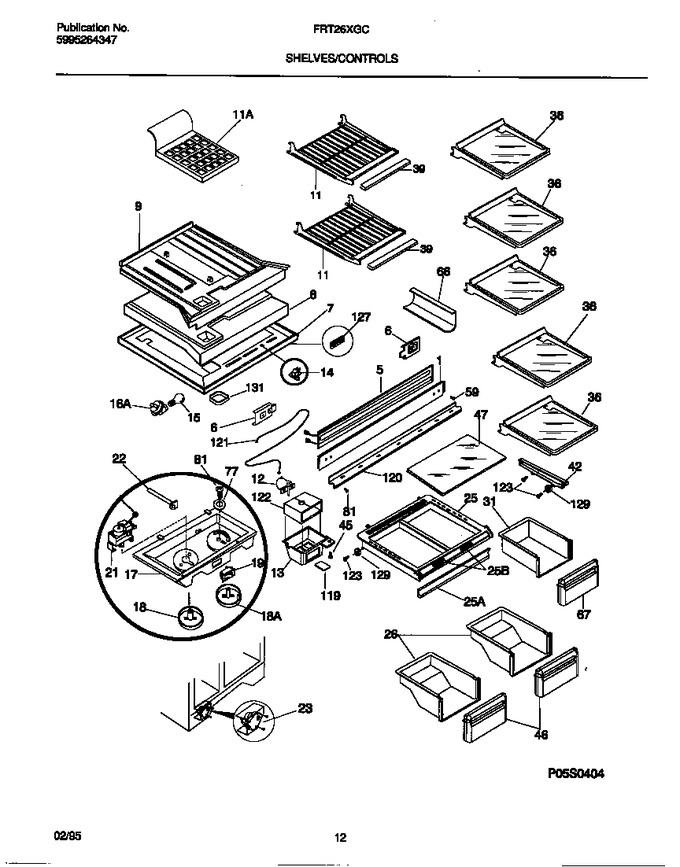

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300209		Mullion, White		Appelez-nous	-
5	215527200		Heater, Mullion, 115v		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	215066304		Top Panel Refr		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	215340402		Divider, Styrofoam		Appelez-nous	-
8	215771700		Gasket-ice Chute (not Illustrated)		Appelez-nous	-
9	215309700		Bottom Panel-frzr		Appelez-nous	-
11	5303300007		Shelf-freezer, Cantilever, Wide, (2)		Appelez-nous	-
12	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
13	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
14	241547902		Switch-light/lamp   (Replaces: 215486600)			Immediately	$ 23.25
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215932904		Box-control		Appelez-nous	-
17	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
18	5303308309		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303303674		Control-temperature				$ 163.75
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
23	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25	5303308329		Trim-crisper Cover		Appelez-nous	-
26	5303300008		Pan-crisper (2)		Appelez-nous	-
31	5303304565		Pan, Meat		Appelez-nous	-
36	215406114		Shelf-``spill-safe``, Fixed, Teal Graphics, (5)		Appelez-nous	-
39	215217542		Trim-frzr Shelf, Wide, (2)		Appelez-nous	-
42	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
11A	215309601		Shelf-freezer, Plastic		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303308310		Knob-temp Control, (damper)		Appelez-nous	-
25A	215216633		Cover-crisper Pan, With Beam, Rollers, Trim And Humid Co		Appelez-nous	-
25B	5303307881		Control-humidity		Appelez-nous	-
