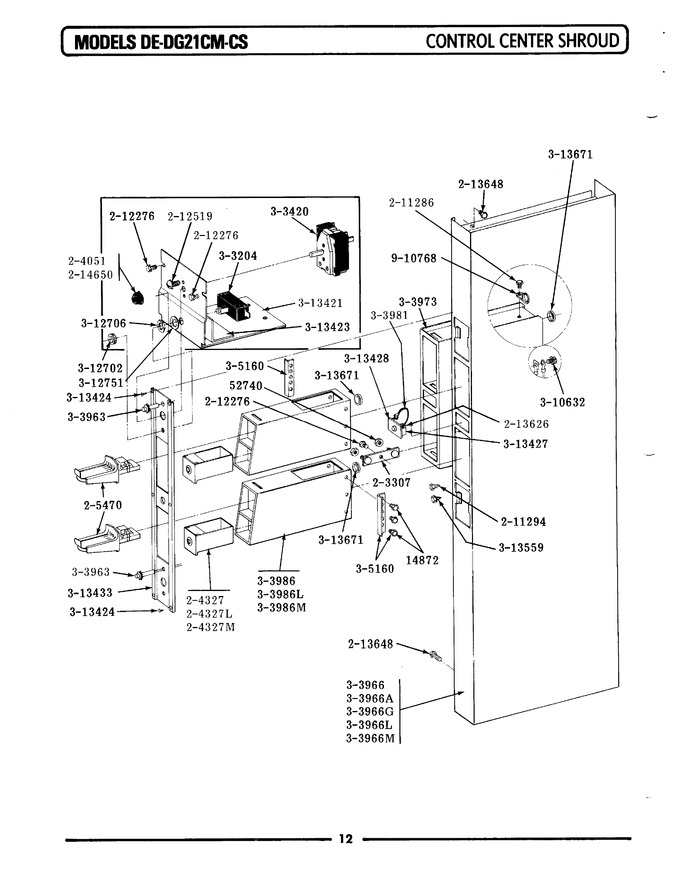

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y014872 | Screw, No.10 X 3/8 | 00 |
|
- | ||||
| 002 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 003 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 004 | 204051 | Knob | 00 |
|
Immediately | $ 164.03 | |||
| 005 | NLA | Coin Box, White | 00 |
|
- | ||||
| 006 | NLA | Maytag Coin Slide | 00 |
|
- | ||||
| 007 | NLA | Screw, Hex Hd No.8 X 1/2 Inch | 00 |
|
- | ||||
| 008 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 009 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 010 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 011 | NLA | Spring Washer, Lock | 00 |
|
- | ||||
| 012 | WP98165 | Screw, Hex Hd No.8 X 5/8 (Replaces: 213648) | 00 |
|
$ 7.20 | ||||
| 013 | 214650 | Screw For 2-4051 Knob | 00 |
|
$ 62.55 | ||||
| 014 | Y303204 | Start Switch W/nuts | 00 |
|
- | ||||
| 015 | Y303420 | Selector Switch | 00 |
|
- | ||||
| 016 | 303963 | Indicator Light | 00 |
|
- | ||||
| 017 | NLA | Control Shroud-white | 00 |
|
- | ||||
| 018 | NLA | Vault Assembly | 00 |
|
- | ||||
| 019 | Y303981 | Ground Wire, Latch | 00 |
|
- | ||||
| 020 | NLA | Outer Case-white | 00 |
|
- | ||||
| 021 | NLA | Coin Meter Stop W/screws | 00 |
|
- | ||||
| 022 | Y310632 | Screw | 00 |
|
- | ||||
| 023 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 024 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 025 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 026 | NLA | Bracket, Switch & Relay | 00 |
|
- | ||||
| 027 | NLA | Insulator | 00 |
|
- | ||||
| 028 | W10837674 | Screw (Replaces: Y313424) | 00 |
|
$ 6.90 | ||||
| 029 | 206637 | Latch, Cover Plate (Replaces: Y313427) | 00 |
|
$ 68.04 | ||||
| 030 | 313428 | Plate, Latch | 00 |
|
- | ||||
| 031 | NLA | Control Panel, Vault | 00 |
|
- | ||||
| 032 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 033 | Y313671 | Grommet, Control Center | 00 |
|
- | ||||
| 034 | 910768 | Cable Strap-harness | 00 |
|
- |
