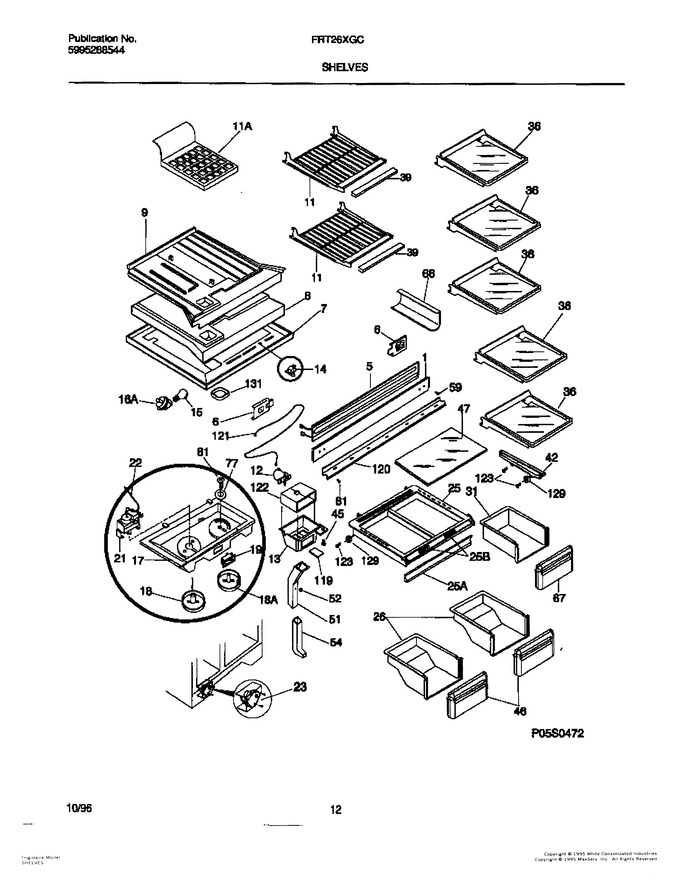

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300209		Mullion, White		Appelez-nous	-
5	215527200		Heater, Mullion, 115v		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	218646802		Top Panel-refr		Appelez-nous	-
8	215340402		Divider, Styrofoam		Appelez-nous	-
8	215771700		Gasket-ice Chute (not Illustrated)		Appelez-nous	-
9	215309700		Bottom Panel-frzr		Appelez-nous	-
11	215309601		Shelf-freezer, Plastic		Appelez-nous	-
12	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12	218634902		Deflector-air,``paddle``				$ 48.01
13	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
13	218629900		Cover-air Deflector				$ 23.96
14	241547902		Switch-light/lamp   (Replaces: 215486600)			Immediately	$ 23.25
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215932905		Control Box		Appelez-nous	-
17	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
18	5303310731		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303319419		Control-temperature		Appelez-nous	-
22	218660701		Tube, Insulator, Plastic, On Temp Sensor		Appelez-nous	-
23	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
23	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer-defrost   (Replaces: 5303321133)			Immediately	$ 28.20
25	5303307881		Control-humidity		Appelez-nous	-
26	5303300008		Pan-crisper (2)		Appelez-nous	-
31	5303304565		Pan, Meat		Appelez-nous	-
36	215406114		Shelf-``spill-safe``, Fixed, Teal Graphics, (5)		Appelez-nous	-
39	215217542		Trim-frzr Shelf, Wide		Appelez-nous	-
42	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	218278301		Front-crisper Pan, (2)		Appelez-nous	-
47	218498104		Insert-pan Cover, Glass, Clear, W/teal Graphics		Appelez-nous	-
51	215133300		Insulation, Air Duct, Front (not Illustrated)		Appelez-nous	-
51	215133200		Insulation-air Duct, Rear (non-illustrated)		Appelez-nous	-
51	215132809		Duct-meat Keeper, Upper		Appelez-nous	-
52	215133000		Damper, Air, Meat Kpr Duct (not Illustrated)		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	215069501		Cap-mullion Screw, White (not Illustrated)		Appelez-nous	-
59	218188500		Screw-mullion Mtg, Lh, Cr Spcl Oval Hd, 10-32 X 0.75, Thread Forming (not Illustrated)		Appelez-nous	-
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Forming   (Replaces: 218188000)				$ 8.34
66	241657701		Rack-wine, White   (Replaces: 5303307872)				$ 57.41
67	218278601		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	218019202		Seal-refr Top		Appelez-nous	-
121	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
121	215364002		Cable-damper Contrl		Appelez-nous	-
122	218561204		Block-air Deflector, Lh		Appelez-nous	-
122	218561202		Block-air Deflector, Rh		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
129	5303299153		Bearing-roller (not Illustrated)				$ 5.09
129	5303299152		Roller-hanger				$ 12.34
131	215379800		Gasket-ice Discharge		Appelez-nous	-
*06165	215339900		Clip, Cantilevr Shlf				$ 5.83
*06166	215339100		Seal-divider Throat		Appelez-nous	-
*06167	215359900		Seal-divider Front		Appelez-nous	-
*06168	218660800		Clip, Snap-in, Divider		Appelez-nous	-
*06169	215848000		Spacer-air Channel		Appelez-nous	-
11A	5303300007		Shelf-freezer, Cantilever, Wide, (2)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303310732		Knob-temp Control, (damper)		Appelez-nous	-
25A	5303308329		Trim-crisper Cover		Appelez-nous	-
25B	215216633		Cover-crisper Pan, With Beam, Rollers, Trim, And Humid C		Appelez-nous	-
