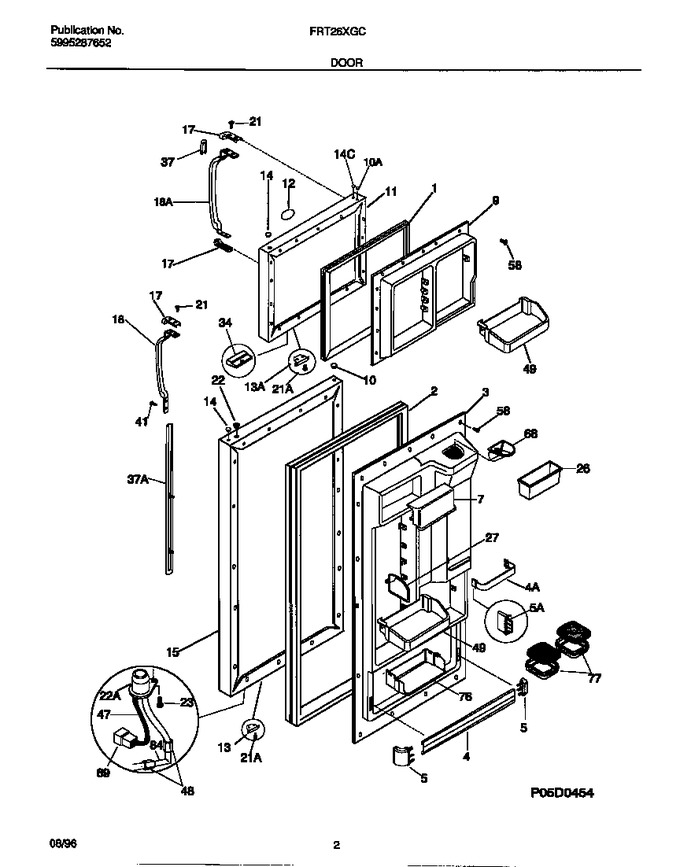

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608914		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303292420		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215365601		Panel-inner Door, Refr		Appelez-nous	-
4	215516256		Rack-door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303308308		Door-dairy		Appelez-nous	-
9	215365501		Panel - Inner Door, Frzr		Appelez-nous	-
10	218696501		Plug-button, White, Closer Hng Hole				$ 4.07
11	5303917719		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	5303917678		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218696401		Handle End, White				$ 47.04
18	215983201		Handle-door, White, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423601		Bumper-light Switch		Appelez-nous	-
37	215867079		Trim-handle, White, Lower, W/dec Gold Band, & Stick-on L				$ 109.41
41	218843801		Screw   (Replaces: 5303001001)				$ 14.41
47	218485200		Harness-wiring, Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
49	218592311		Bin-door, 2-liter, With Trim		Appelez-nous	-
49	218592307		Bin-door, Gallon, With Trim		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
68	218498000		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
76	218423700		Rack-microwave Dish				$ 301.79
77	218423501		Dish-microwave, (2)				$ 4.59
84	5308010289		Elbow-water Tube				$ 45.84
*95760	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
10A	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
13A	5303289522		Door Stop				$ 40.17
14C	218696601		Plug-button, White, Handle				$ 1.75
18A	215981301		Handle-door, White, Frzr, Soft Grip		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22A	5303289320		Bearing-hinge				$ 19.69
37A	218549826		Trim-handle, White, Upper, W/dec Gold Band		Appelez-nous	-
4A	215693901		Rack-door, W/end Caps		Appelez-nous	-
5A	5303288950		Support-door Rack, Rh/lh				$ 51.19
