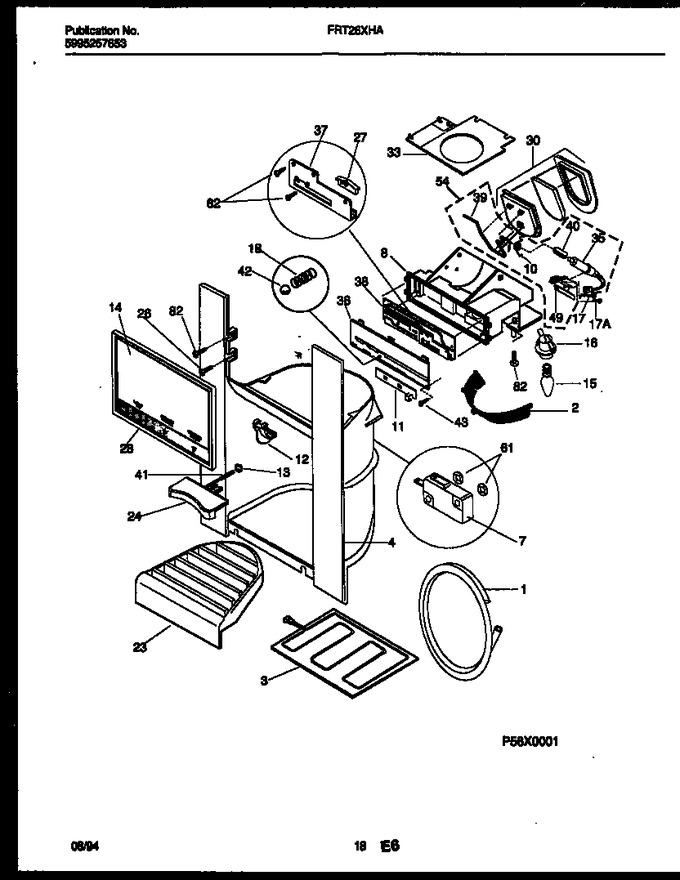

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215294102		Tube-water Inlet, Formed, Plastic, Dispenser		Appelez-nous	-
2	215732111		Deflector-ice Disp,almond		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	5303298525		Housing-dispenser,almond		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	215763501		Module - Dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
11	215897500		Slide-selector Sw, (pc Board)		Appelez-nous	-
12	215766502		Knob-selector,almond		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	215993002		Label-module Cover, Almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
18	215760200		Spring		Appelez-nous	-
23	5303297845		Drip Tray,almond				$ 67.04
24	215766302		Actuator,almond		Appelez-nous	-
26	215503203		Screw,hilo Phil Pn Hd,10 X 1/2   (Replaces: 215503200)			Immediately	$ 7.09
27	215254700		Cam-slide		Appelez-nous	-
28	5303297847		Cover-module,almond		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	215851100		Heater-disp Throat		Appelez-nous	-
35	218284700		Heat Motor,115v		Appelez-nous	-
36	215254400		Cover-selector Sw		Appelez-nous	-
37	215763400		Guide-cam		Appelez-nous	-
38	215894603		Pc Board		Appelez-nous	-
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
42	215756000		Ball		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
54	5303917444		Heat Motor Kit, 115v		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*10904	215781700		Clip-tube		Appelez-nous	-
*10904	215923400		Washer-flat		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
1A	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
38A	215630800		Washer, Ext Tooth Lock, Light Switch, (non-illustrated)		Appelez-nous	-
38B	215631000		Nut, Hex, Light Switch (non-illustrated)		Appelez-nous	-
38C	215763900		Cap-light Switch (non-illustrated)		Appelez-nous	-
7A	215944300		Shield-micro Switch (non-illustrated)				$ 58.85
