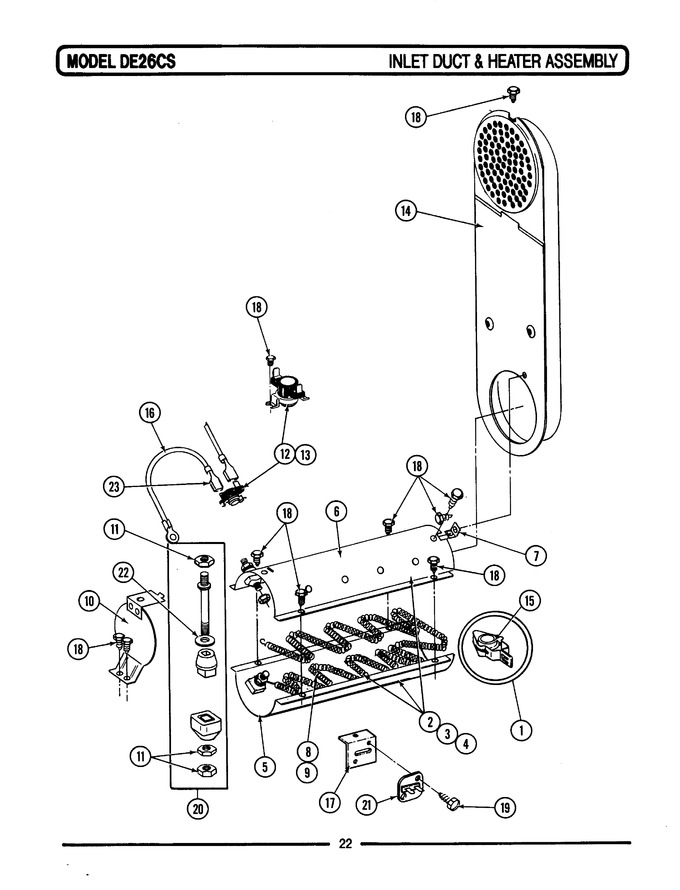

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPY303881		Clip & Insulator Assembly   (Replaces: Y303881)	00		Immediately	$ 19.79
002	WPY303404		Heater Assembly Complete   (Replaces: Y303404)	00		Immediately	$ 264.87
003	Y303778		Heater Assembly Complete	00			$ 199.36
004	Y303856		Heater Assembly Complete	00	Appelez-nous	-
005	Y313576		Heater Chamber, Bottom	00	Appelez-nous	-
006	Y313575		Heater Chamber, Top	00	Appelez-nous	-
007	Y312890		Retainer, Heater Chamber	00	Appelez-nous	-
008	W10116793		Heater Element Kit (208v)   (Replaces: Y304837)	00			$ 190.96
009	Y313537		Heater Element 240 Volt	00	Appelez-nous	-
010	304124		Heater Shield	00	Appelez-nous	-
011	WP112432		Nut, Terminal Block   (Replaces: 311484)	00			$ 7.16
012	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	00		Immediately	$ 44.02
013	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	00		Immediately	$ 66.12
014	NLA		Inlet Duct Assy.	00	Appelez-nous	-
015	Y313270		Insulator, Heater Element	00			$ 5.85
016	WPY304693		Jumper Wire   (Replaces: Y304693)	00		Immediately	$ 6.47
017	315046		Mounting Bracket	00	Appelez-nous	-
018	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
019	NLA		Screw	00	Appelez-nous	-
020	Y304596		Terminal Insulator Assembly	00		Immediately	$ 22.97
021	WP307473		Fuse, Thermal   (Replaces: 307473)	00		Immediately	$ 55.22
022	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	00			$ 7.25
023	210745		Wire Terminal	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
