Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

001 NLA Inlet Duct Assy. Appelez-nous -
002 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

002 Y312890 Retainer, Heater Chamber Appelez-nous -
003 Y313270 Insulator, Heater Element Special Order $ 5.85

004 WPY303881 Clip And Insulator Assy.   (Replaces: Y303881) In-Stock Immediately $ 19.79

005 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

005 307470 Heater Assy 240v Appelez-nous -
005 307471 Heater Assy 208v Appelez-nous -
006 WP307473 Fuse, Thermal   (Replaces: 307473) In-Stock Immediately $ 55.22

006 NLA Screw Appelez-nous -
007 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

007 315046 Mounting Bracket Appelez-nous -
008 W10116793 Heater Element Kit (208v)   (Replaces: Y304837) Special Order $ 190.96

008 Y313537 Heater Element 240 Volt Appelez-nous -
009 Y313576 Heater Chamber, Bottom Appelez-nous -
010 Y304596 Terminal Insulator Assy. In-Stock Immediately $ 22.97

011 WP112432 Nut, Terminal Block   (Replaces: 311484) Special Order $ 7.16

012 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

012 304124 Heater Shield Appelez-nous -
013 WP311093 Washer, 7/32 Inch   (Replaces: 311093) Special Order $ 7.25

014 210745 Wire Terminal Appelez-nous -
015 WPY304693 Jumper Wire   (Replaces: Y304693) In-Stock Immediately $ 6.47

016 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

016 WP303396 Thermostat, Hi-limit (elec)   (Replaces: 303396) In-Stock Immediately $ 44.02

016 WP303896 Hi-limit Thermostat (can)   (Replaces: 303896) In-Stock Immediately $ 66.12

017 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

017 Y313575 Heater Chamber, Top Appelez-nous -

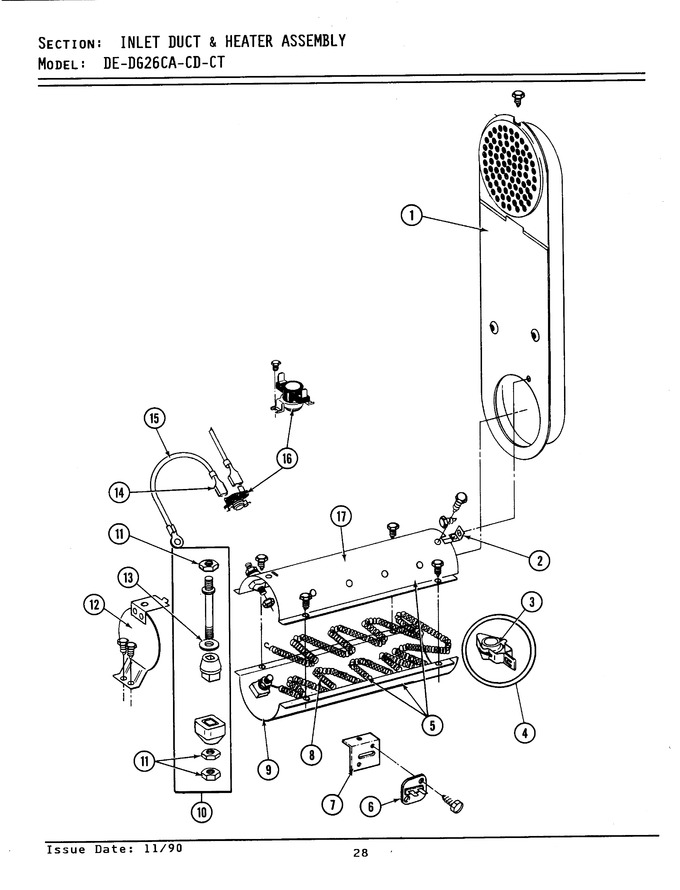

    View Diagram in Separate Window     Print Icon   Print Part List
