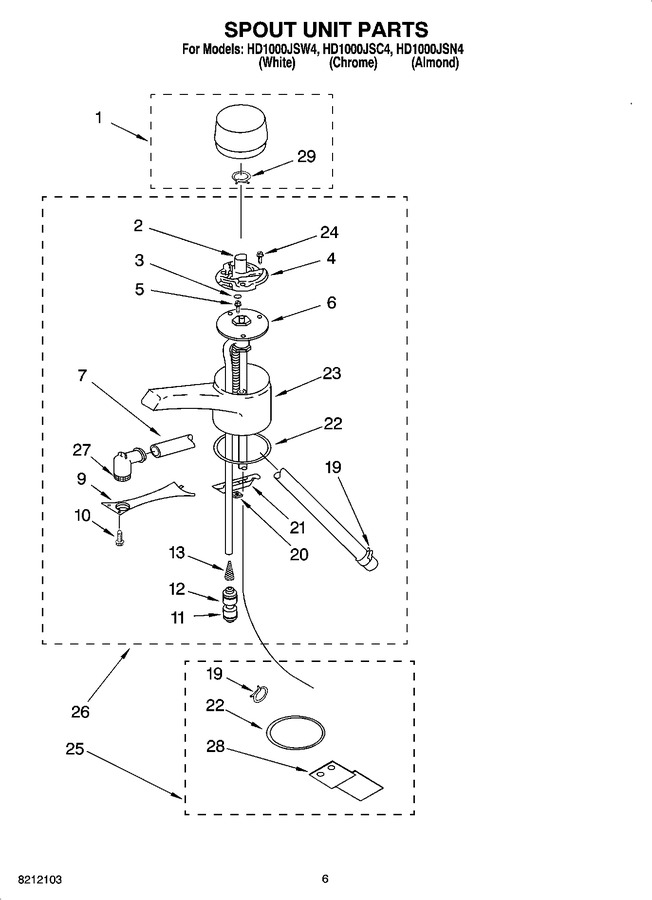

03 - Spout Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3193052 | Knob (white) |
|
- | |||||
| 1 | 3193051 | Knob (black) |
|
- | |||||
| 1 | 3193053 | Knob (almond) |
|
- | |||||
| 2 | 3192270 | Hub, Valve Drive |
|
- | |||||
| 3 | 3192262 | Spring, Compression |
|
- | |||||
| 4 | 3192137 | Cam |
|
- | |||||
| 5 | WP3400202 | Cap Screw, 1/4-20 X 5`` Rd. (Replaces: 3400202) |
|
$ 13.65 | |||||
| 6 | 3192899 | Mechanical Valve (includes Illus. 13 & 14) |
|
$ 115.13 | |||||
| 7 | 8541030 | Tube (3/8`` I.d.) |
|
- | |||||
| 9 | 4162837 | Plate, Spout |
|
- | |||||
| 10 | 3400403 | Screw, Self Tapping (4-20 X 5/16``) Phil. Flat Hd. |
|
- | |||||
| 11 | WP2198677 | Water Union (Replaces: 3191383) |
|
Immediately | $ 24.98 | ||||
| 12 | 3191385 | Cover, Collet |
|
- | |||||
| 13 | 3193133 | Screen, Inlet |
|
- | |||||
| 19 | 3400975 | Clamp, Tube (3/8`` Tubing) |
|
- | |||||
| 20 | 4159067 | Machine Nut 1/4-20 Sq. |
|
- | |||||
| 21 | 4162384 | Bracket, Spout Mounting |
|
- | |||||
| 22 | 4162831 | Seal, Sink |
|
- | |||||
| 23 | 3193337 | Faucet Spout (white) |
|
- | |||||
| 23 | 3193338 | Faucet Spout (almond) |
|
- | |||||
| 23 | 3193336 | Faucet Spout (chrome) |
|
- | |||||
| 24 | 489392 | Screw, Self Tapping (Replaces: 3400640) |
|
$ 12.02 | |||||
| 25 | 3191594 | Hardware, Installation |
|
- | |||||
| 26 | 3193354 | Faucet Assembly (white) |
|
- | |||||
| 26 | 3193353 | Faucet Assembly (chrome) |
|
- | |||||
| 26 | 3193355 | Faucet Assembly (almond) |
|
- | |||||
| 27 | 4161255 | Flow Screen |
|
- | |||||
| 28 | 4162589 | Bracket, Mounting |
|
$ 5.74 | |||||
| 29 | 3177799 | Clamp, Hose |
|
- |
