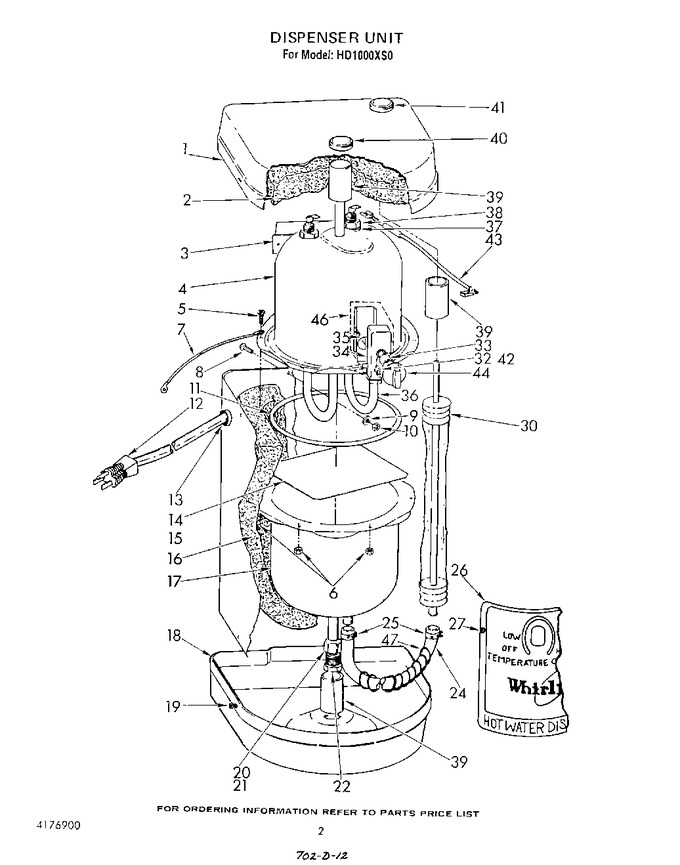

SELECT A DIAGRAM

01 - Front Page


02 - Dispenser


03 - Spout


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162585		Cap, Top		Appelez-nous	-
2	4162376		Upper Insulation		Appelez-nous	-
3	4162589		Bracket, Mounting				$ 5.74
4	4162372		Upper Tank & Tube		Appelez-nous	-
5	WPW10068250		Machine Screw, 8-32 X 3/8`` Phil. Pan Head   (Replaces: 4159230)				$ 3.66
6	4159072		Machine Nut (8-32 Hex)		Appelez-nous	-
7	4162386		Ground Wire		Appelez-nous	-
8	WP3400814		Machine Screw, 8-32 X 1/2`` Phil. Truss Hd.   (Replaces: 4159286)				$ 3.96
9	4159493		Lock Washer No.8 Ext. Shakeproof				$ 21.02
10	4159072		Machine Nut No.8-32 Hex		Appelez-nous	-
11	4159824		O-ring				$ 38.57
12	4162195		Cord & Plug		Appelez-nous	-
13	4159032		Strain Relief		Appelez-nous	-
14	4162373		Deflector		Appelez-nous	-
15	4162583		Shell Cover		Appelez-nous	-
16	4162374		Insulation Tank		Appelez-nous	-
17	4162370		Lower Tank		Appelez-nous	-
18	4162587		Cap, Bottom		Appelez-nous	-
19	W11245710		Screw & L.w. Assy. No.8 X 3/8 Phil. Truss Head   (Replaces: 4169569)			Immediately	$ 12.65
20	4159056		Nut, Tube Fitting (3/8``)		Appelez-nous	-
21	4159055		Sleeve, Tube Fitting (3/8``)		Appelez-nous	-
22	4162591		Plug, Drain		Appelez-nous	-
24	4162381		Hose, Clear		Appelez-nous	-
25	4161148		Clamp, Tube (9/16`` Tube)		Appelez-nous	-
26	4176041		Cover, Thermostat		Appelez-nous	-
27	W10853069		Screw, Self Tap   (Replaces: 4159430)				$ 3.67
30	4162380		Displacer		Appelez-nous	-
32	4159072		Machine Nut No.8-32 Hex		Appelez-nous	-
33	4162379		Bushing, Thermostat		Appelez-nous	-
34	4162377		Thermostat		Appelez-nous	-
35	4162378		Cover, Dust (thermostat)		Appelez-nous	-
36	4162387		Heater Element (includes Illus. 37 & 38)		Appelez-nous	-
37	4159825		``o``, Ring				$ 5.62
38	4160076		Nut, Heater Element		Appelez-nous	-
39	4162375		Spacer (3)		Appelez-nous	-
40	4161909		Bushing, Water Outlet Tube		Appelez-nous	-
41	4161910		Bushing, Water Inlet Tube		Appelez-nous	-
42	4159493		Lock Washer No.8 Ext. Shakeproof				$ 21.02
43	4162641		Fuse, Thermal		Appelez-nous	-
44	4162606		Knob, Thermostat		Appelez-nous	-
46	4162983		Thermostat & Dust Cover (includes Illus. No.34 & 35)		Appelez-nous	-
47	4162361		Upper Tank (includes Illus. 4 & 36)		Appelez-nous	-
47	4176042		Spring, Hose (anti-kink)		Appelez-nous	-
