SELECT A DIAGRAM

01 - Dispenser

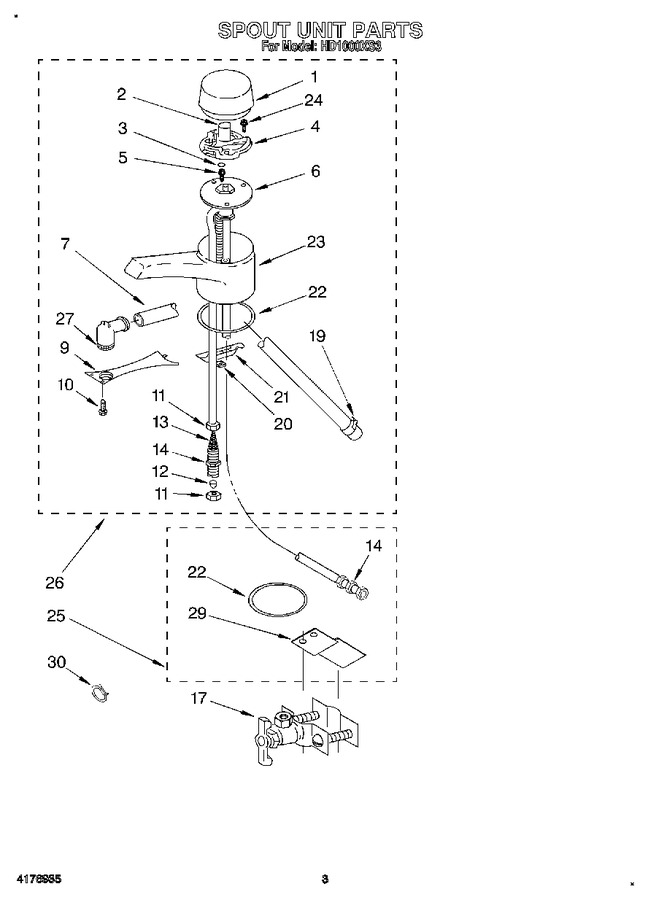

02 - Spout


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4176039		Cap, Dispenser		Appelez-nous	-
2	4162650		Hub, Valve Drive		Appelez-nous	-
3	4163277		Spring, Compression		Appelez-nous	-
4	4162649		Hub, Cam		Appelez-nous	-
5	4159314		Cap Screw, 1/4-20 X 5`` Rd.		Appelez-nous	-
6	4162844		Mechanical Valve (includes Illus. 13 & 14)		Appelez-nous	-
7	4161917		Tube (3/8`` I.d.)		Appelez-nous	-
9	4162837		Plate, Spout		Appelez-nous	-
10	4159425		Screw, Self Tapping (no.4-20 X 5/16``) Phil. Flat Hd.		Appelez-nous	-
11	WP2198677		Compression Nut   (Replaces: 4159059)			Immediately	$ 24.98
12	4159058		Sleeve, Compression		Appelez-nous	-
13	4162185		Screen, Inlet		Appelez-nous	-
14	WP2198677		Union, Compression (1/4`` Tube To 1/4`` Tube) (includes Illus. 11 & 12)   (Replaces: 4159060)			Immediately	$ 24.98
17	4161200		Valve, Self- Drilling		Appelez-nous	-
19	4161147		Clamp, Tube (3/8`` Tubing)		Appelez-nous	-
20	4159067		Machine Nut 1/4-20 Sq.		Appelez-nous	-
21	4162384		Bracket, Spout Mounting		Appelez-nous	-
22	4162831		Seal, Sink		Appelez-nous	-
23	4162382		Spout Body (chrome)		Appelez-nous	-
24	489392		Screw, Self Tapping   (Replaces: 4159434)				$ 12.02
25	4162385		Kit, Bracket		Appelez-nous	-
26	3180240		Spout Assembly		Appelez-nous	-
27	4161255		Flow Screen		Appelez-nous	-
29	4162589		Bracket, Mounting				$ 5.74
30	3177799		Clamp, Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
