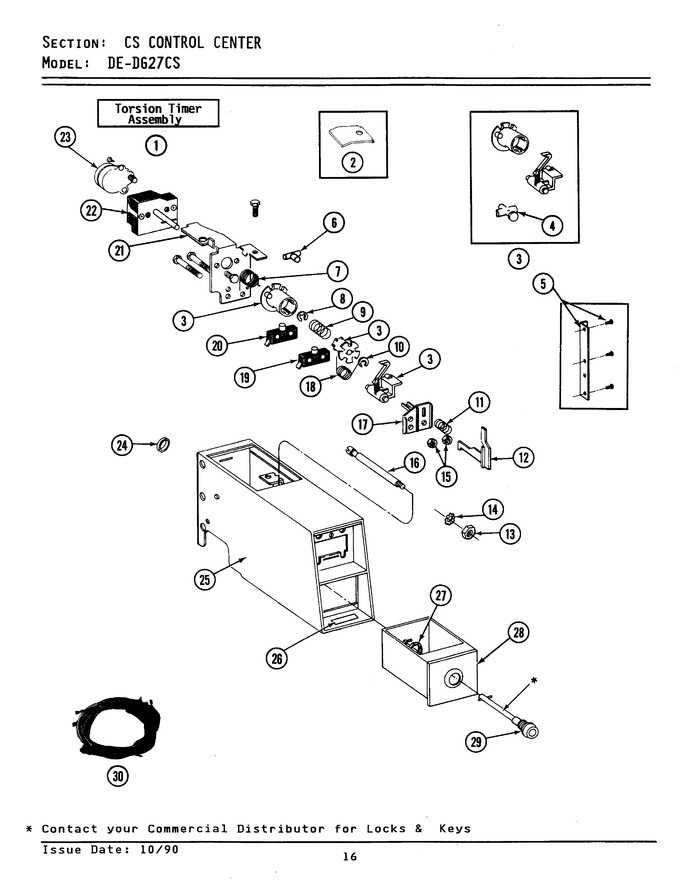

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 305797 | Torsion Timer Assm Complete | 00 |
|
$ 185.18 | ||||
| 002 | NLA | Stop For Timer Mechanism | 00 |
|
- | ||||
| 003 | 306104 | Torsion-timer Kit | 00 |
|
- | ||||
| 003 | 314330 | Driver For Index Wheel (not Included W/kit) | 00 |
|
$ 2.15 | ||||
| 004 | Y308109 | Adjustment Return Stop (Replaces: 314547) | 00 |
|
$ 53.59 | ||||
| 005 | NLA | Coin Meter Stop With Screws | 00 |
|
- | ||||
| 005 | Y014872 | Screw, No.10 X 3/8 | 00 |
|
- | ||||
| 006 | 314335 | Time Adjustment Peg | 00 |
|
$ 5.22 | ||||
| 007 | 314331 | Return Spring | 00 |
|
$ 36.13 | ||||
| 008 | Y312270 | E Clip | 00 |
|
- | ||||
| 009 | 211065 | Spring, Timer Knob | 00 |
|
$ 5.70 | ||||
| 010 | 211790 | Lock Ring For Timer Shaft | 00 |
|
$ 6.54 | ||||
| 011 | NLA | Helical Spring ----n | 00 |
|
- | ||||
| 012 | 33002968 | Slider (Replaces: 314337) | 00 |
|
$ 41.03 | ||||
| 013 | Y052721 | Nut | 00 |
|
$ 21.38 | ||||
| 014 | 910387 | Lock Washer | 00 |
|
- | ||||
| 015 | M0282005 | Hex. Nut, No.6-32 (Replaces: Y052634) | 00 |
|
$ 7.07 | ||||
| 016 | 215559 | Bolt, Locking | 00 |
|
$ 5.25 | ||||
| 016 | NLA | Locking Bolt | 00 |
|
- | ||||
| 017 | 314339 | Switch And Slider Bracket | 00 |
|
- | ||||
| 018 | 314332 | Actuator Spring | 00 |
|
- | ||||
| 019 | 305798 | Bypass Switch For Motor | 00 |
|
- | ||||
| 020 | Y305799 | Bypass Switch For Heater | 00 |
|
$ 29.88 | ||||
| 021 | 314333 | Timer Mounting Bracket | 00 |
|
- | ||||
| 021 | 315277 | Screw | 00 |
|
- | ||||
| 021 | WP488234 | Screw -relay To Tub Support (Replaces: 910708) | 00 |
|
$ 6.07 | ||||
| 021 | NLA | Instruction Label | 00 |
|
- | ||||
| 022 | 305796 | Timer | 00 |
|
$ 154.49 | ||||
| 022 | 305800 | Wire Harness For Timer | 00 |
|
- | ||||
| 022 | 305813CP | Timer - Canada Rpr (Replaces: 305813) | 00 |
|
- | ||||
| 023 | 305870 | Timer Motor Rpr | 00 |
|
- | ||||
| 024 | Y313671 | Grommet For Control Center | 00 |
|
- | ||||
| 025 | Y307081 | Coin Meter Weld Assembly | 00 |
|
- | ||||
| 025 | NLA | Coin Meter Weld Assy-alm----na | 00 |
|
- | ||||
| 026 | Y313439 | Instruction Label | 00 |
|
- | ||||
| 027 | W11395752 | Nut, Hex (Replaces: 212328) | 00 |
|
$ 11.74 | ||||
| 028 | 208883 | Coin Box-white (Replaces: 205423) | 00 |
|
- | ||||
| 028 | 208883 | Coin Box-almond (Replaces: 205423L) | 00 |
|
- | ||||
| 028 | 205423M | Coin Box-harvest Wheat | 00 |
|
- | ||||
| 029 | NLA | Spring Washer For Lock | 00 |
|
- | ||||
| 030 | NLA | Wire Harness | 00 |
|
- |
