Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3192080 Ground Wire Appelez-nous -
2 4159072 Nut Appelez-nous -
3 3192286 Tank, Complete Appelez-nous -
14 3191423 Thermostat Appelez-nous -
15 4159493 Lockwasher Special Order $ 21.02

16 3192538 Knob, Thermostat Special Order $ 36.60

17 3192351 Fuse, Thermal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

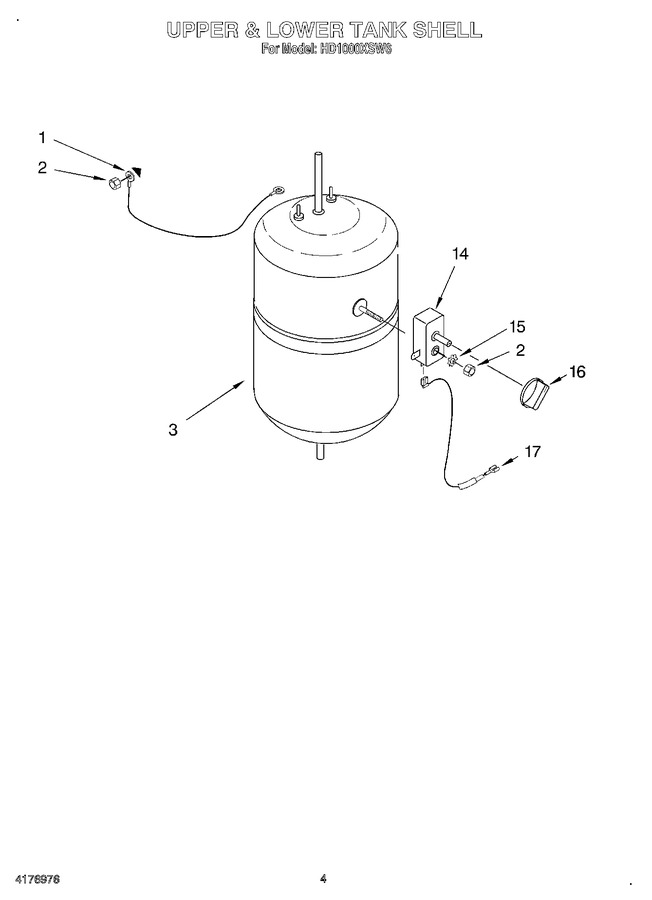

Diagram for HD1000XSW6
