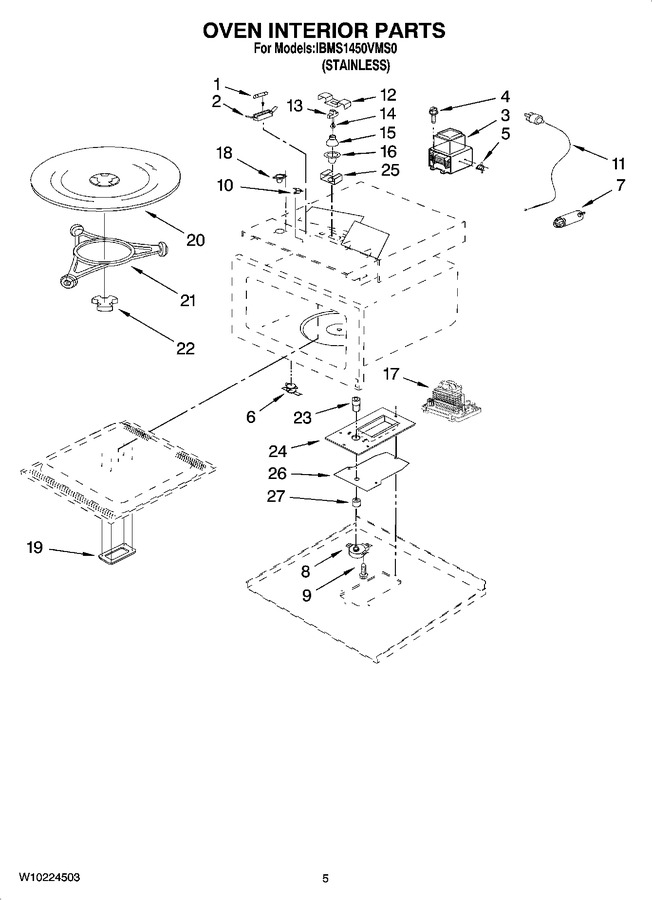

05 - Oven Interior Parts


06 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4375321		Fuse   (Replaces: 4375321)			Immediately	$ 16.45
2	8205670		Fuse Holder				$ 66.99
3	8206079		Magnetron   (Replaces: W10217467)			Immediately	$ 285.52
4	8205651		Screw		Appelez-nous	-
5	8205652		Thermostat				$ 29.96
6	W10141630		Thermostat			Immediately	$ 17.01
7	WPW10120220		Mains Filter   (Replaces: W10120220)				$ 167.99
8	W10911403		Turntable Motor   (Replaces: W10120511)			Immediately	$ 105.78
9	461967825321		Screw   (Replaces: 4375202)				$ 10.40
10	W11676348		Thermostat, Cavity   (Replaces: 8205659)				$ 38.05
11	8205660		Power Cord		Appelez-nous	-
12	8205679		Spring, Lamp Holder		Appelez-nous	-
13	WPW10490593		Socket, Lamp   (Replaces: 8205658)				$ 66.70
14	WPW10440740		Lamp   (Replaces: 4375348)			Immediately	$ 33.20
15	423107022541		Reflector   (Replaces: 4375320)				$ 73.63
16	W11193483		Lens, Lamp   (Replaces: 4375318)			Immediately	$ 89.85
17	W10217711		Inverter   (Replaces: W10120229)			Immediately	$ 260.67
18	W10871220		Sensor, Humidity   (Replaces: 8205690)				$ 158.94
19	W10915651		Cover, Inlet   (Replaces: W10120230)			Immediately	$ 76.20
20	W11373838		Turntable, Glass   (Replaces: 8205676)			Immediately	$ 70.65
21	W11110134		Ring, Turntable   (Replaces: 8205538)			Immediately	$ 66.60
22	W11223840		Driver, Turntable   (Replaces: 8205539)				$ 23.94
23	W11126044		Shaft, Turntable   (Replaces: 8205682)				$ 25.91
24	461967008471		Holder, Motor   (Replaces: 8205681)				$ 73.63
25	W11440819		Clip. Spring   (Replaces: W10120231)				$ 19.71
26	W10120234		Cover, Motor				$ 43.07
27	4375252		Gasket, Shaft				$ 38.27
