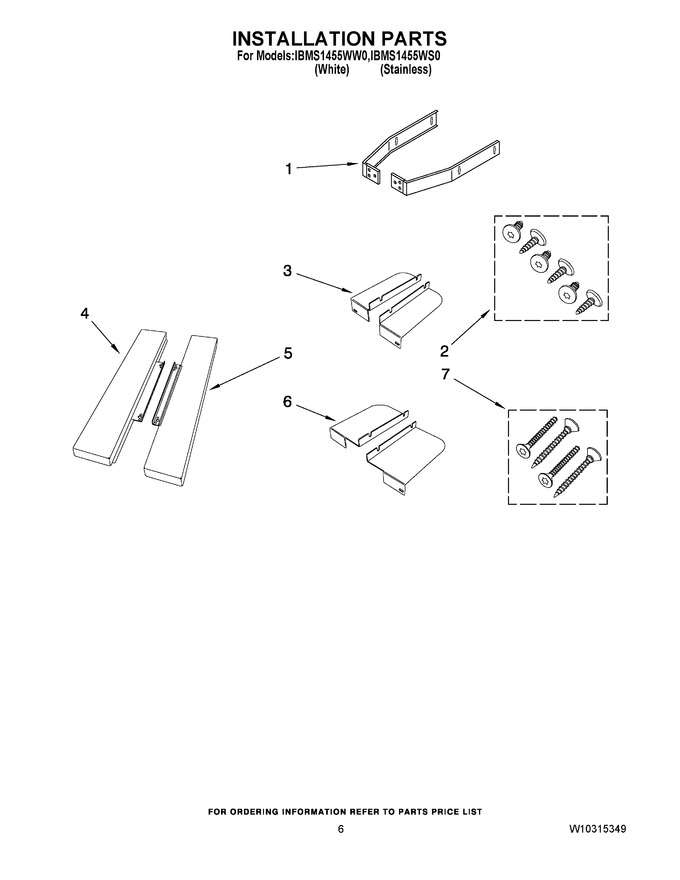

06 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170866		Bracket, Mounting		Appelez-nous	-
2	WP487353		6 Pk. Screws   (Replaces: 8205755)				$ 6.81
3	W10775910		Narrow Bracket (27`` Left)   (Replaces: 8205756)				$ 94.66
3	W10775910		Narrow Bracket (27`` Right)   (Replaces: 8205757)				$ 94.66
4	W10317225		Side Strip Glass Left (30`` White)				$ 110.50
4	W10721489		Side Strip Glass Left (30`` Stainless)   (Replaces: W10317227)				$ 223.28
5	W10317228		Side Strip Glass Right (30`` White)				$ 143.60
5	W10317230		Side Strip Glass Right (30`` Stainless)		Appelez-nous	-
6	W10775910		Wide Bracket (30`` Left)   (Replaces: 8205762)				$ 94.66
6	W10775910		Wide Bracket (30`` Right)   (Replaces: 8205763)				$ 94.66
7	8205771		4 Pk. Screws		Appelez-nous	-
NI	W10141642		Mounting Kit		Appelez-nous	-
