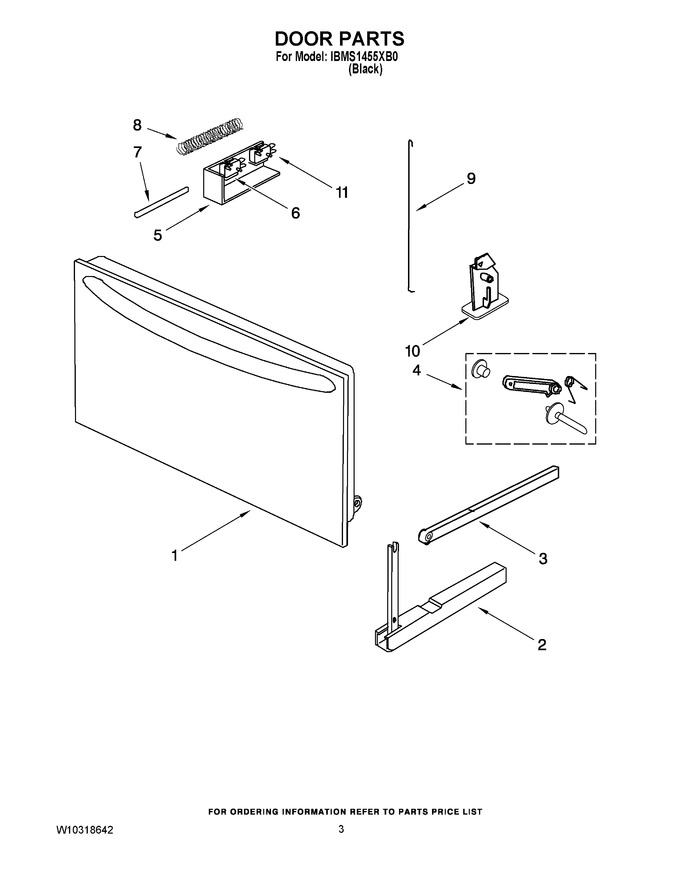

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317088 | Door Assembly (black) |
|
$ 247.34 | |||||
| 2 | W11700293 | Hinge Assembly (2) (Replaces: 8205733) |
|
Immediately | $ 65.96 | ||||
| 3 | W11214480 | Sliding Arm (Replaces: W10120236) |
|
$ 86.18 | |||||
| 4 | WPW10128850 | Sliding Arm Kit (Replaces: W10128850) |
|
Immediately | $ 121.78 | ||||
| 5 | WP8205683 | Switch Holder (2) (Replaces: 8205683) |
|
Immediately | $ 89.47 | ||||
| 6 | W10211972 | Switch (2) (Replaces: W10217468) |
|
Immediately | $ 47.16 | ||||
| 7 | WPW10120235 | Push-rod (2) (Replaces: W10217473) |
|
Immediately | $ 6.27 | ||||
| 8 | W11715912 | Spring Cam (Replaces: 8205685) |
|
Immediately | $ 6.44 | ||||
| 9 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 61.97 | |||||
| 10 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 13.30 | ||||
| 11 | W10211972 | Switch (Replaces: 4375346) |
|
Immediately | $ 47.16 |
