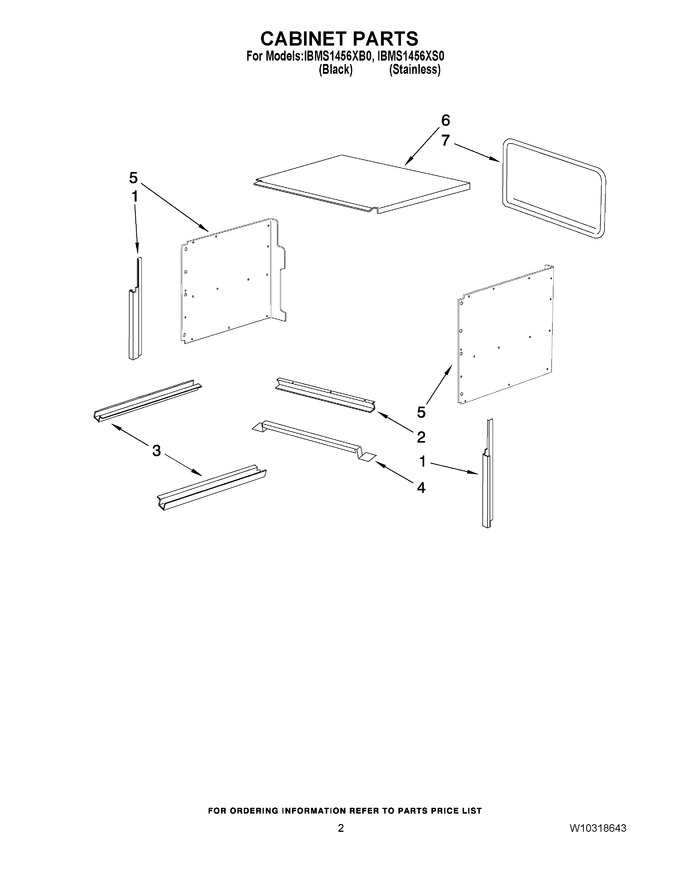

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317083 | Trim, Side (rh Black) |
|
$ 92.81 | |||||
| 1 | W10317082 | Trim, Side (lh Black) |
|
- | |||||
| 2 | 8205720 | Trim, Bottom |
|
- | |||||
| 3 | 8205707 | Support, Bottom |
|
Immediately | $ 58.96 | ||||
| 4 | 8205708 | Bracket, Bottom |
|
- | |||||
| 5 | 8205674 | Chassis, Side (left) |
|
- | |||||
| 5 | 8205680 | Chassis, Side (right) |
|
$ 113.54 | |||||
| 6 | W10693404 | Top Plate (Replaces: 8205709) |
|
$ 128.35 | |||||
| 7 | 8205710 | Back, Cover |
|
- |
