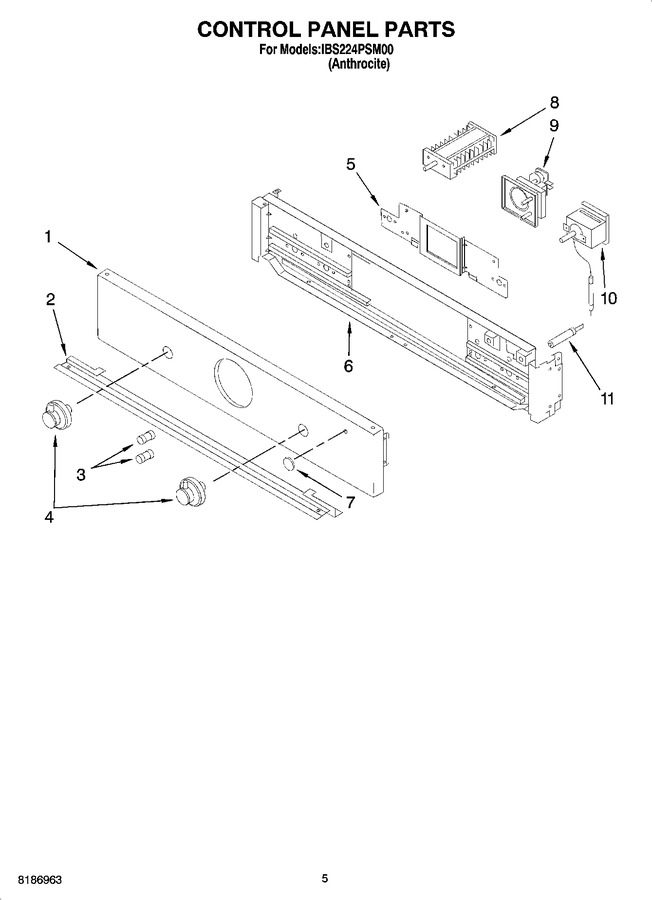

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186913 | Panel, Control |
|
- | |||||
| 2 | 8186838 | Trim, Lower |
|
- | |||||
| 3 | 8186914 | Button, Push (2) |
|
- | |||||
| 4 | 8186915 | Knob (2) |
|
$ 40.64 | |||||
| 7 | 8186917 | Lens |
|
- | |||||
| 8 | 8186922 | Switch, Oven |
|
$ 130.40 | |||||
| 9 | 8186920 | Clock |
|
$ 164.18 | |||||
| 10 | 8186921 | Thermostat (oven) |
|
$ 158.40 | |||||
| 10 | 8186874 | Thermostat (broil) |
|
$ 166.83 | |||||
| 11 | 8186916 | Lamp, Pilot |
|
- |
