SELECT A DIAGRAM

01 - Oven Parts

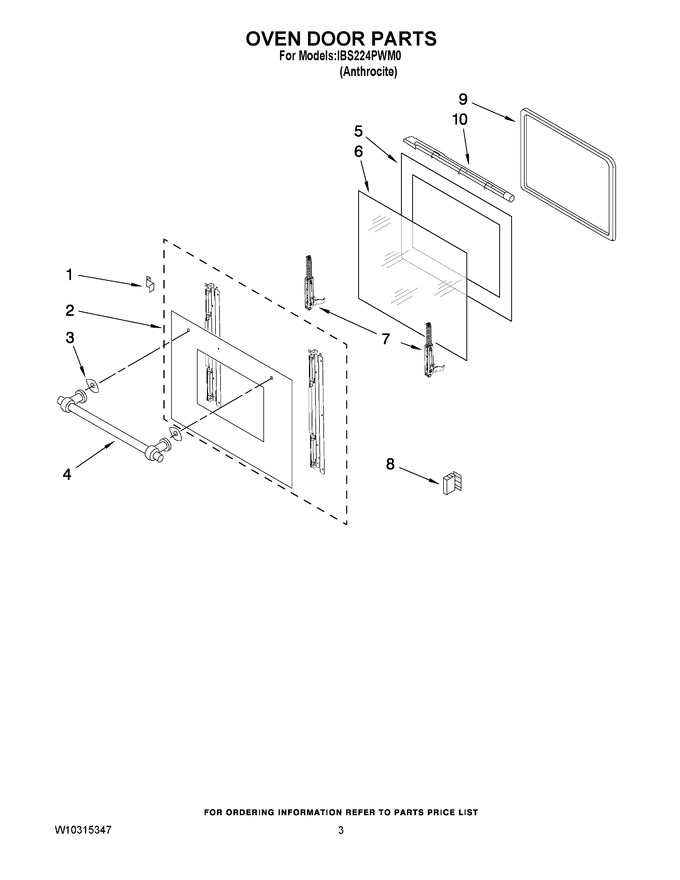

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8186923		Mtg, Stopper		Appelez-nous	-
2	W10322289		Assy, Door Glass		Appelez-nous	-
3	W10260705		Spacer, Handle		Appelez-nous	-
4	W10260718		Handle, Door		Appelez-nous	-
5	W10322290		Glass, Inner		Appelez-nous	-
6	8186848		Glass, Inner		Appelez-nous	-
7	W10260701		Hinge, Door		Appelez-nous	-
8	W10240561		Glass, Support		Appelez-nous	-
9	8186849		Gasket, Door		Appelez-nous	-
10	8186844		Vent, Exhaust		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
