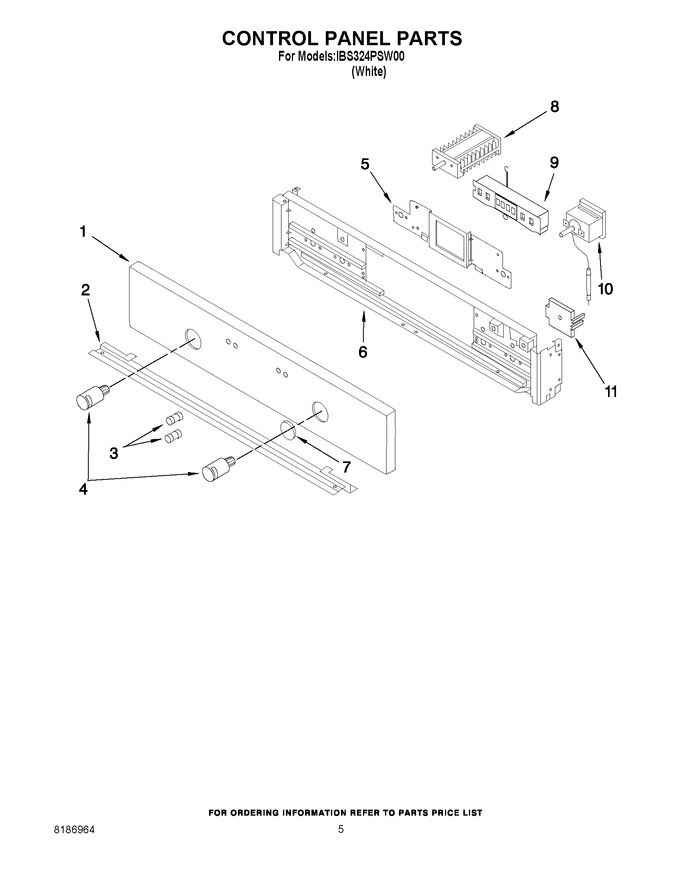

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186857 | Panel, Control |
|
- | |||||
| 2 | 8186838 | Trim, Lower |
|
- | |||||
| 3 | 8186859 | Button, Push (2) |
|
- | |||||
| 4 | 8186860 | Knob (rh) |
|
$ 41.24 | |||||
| 4 | 8186861 | Knob (lh) |
|
- | |||||
| 5 | N/P | Bracket, Display (not Serviced) |
|
- | |||||
| 6 | N/P | Bracket (not Serviced) |
|
- | |||||
| 7 | 8186858 | Clamp |
|
$ 8.74 | |||||
| 8 | 8186879 | Switch, Oven |
|
$ 153.91 | |||||
| 9 | 8186862 | Control, Oven |
|
$ 210.15 | |||||
| 10 | 8186874 | Thermostat (broil) |
|
$ 166.83 | |||||
| 10 | 8186875 | Thermostat (oven) |
|
$ 80.97 | |||||
| 11 | 8186872 | Regulator |
|
$ 55.13 |
